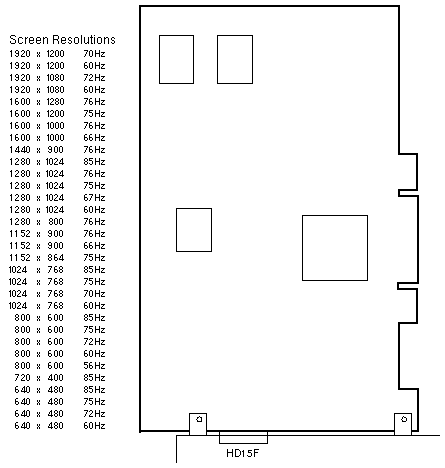

PGX64

Codename: Guava

8/24-Bit Color Frame Buffer

A21 / A22 / A23 / A25 / A26 / A27
A28 / A29 / A33 / A34 / A35 / A36 / A41
E3500 / E4500 / E5500 / E6500
Sun Fire V120 / Sun Fire V480 / Sun Fire V880

Option 3768

370-4362
3.3/5V 32Bit 33MHz


UNIX ID: /dev/fbs/m640

Notes

  1. The minimum OS is 2.5.1.
  2. Option 3768 includes HD15 to DB13W3 Adapter 530-2917.
  3. On the Ultra 60, Ultra 80, and Sun Blade 1000 systems, PGX64 cannot be installed if there is a double-wide UPA frame buffer (Elite3D m6 graphics) installed in the adjacent UPA slot.
  4. It is suggested for Ex500 systems that at least one CPU be installed for each PGX64 card.
  5. The board is supported in either 33MHz or 66MHz PCI slots.
    If installed in a 33MHz slot, the board (and the entire bus) will run at 33MHz.

Reference

PGX64 PCI Graphics Card Installation Guide, 806-6548.
