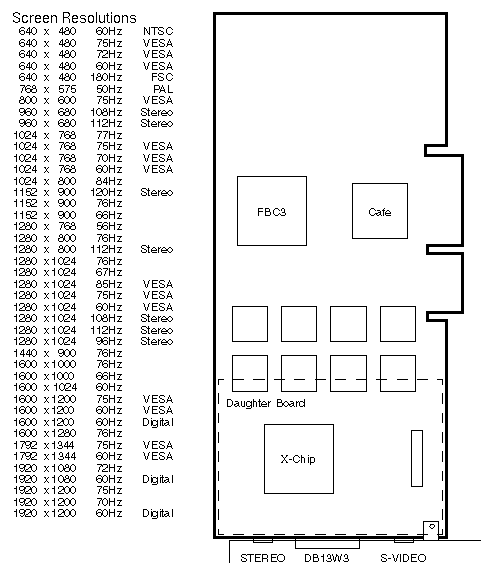

XVR-1000 Graphics Accelerator

Codename: FFB3

30-Bit Color Frame Buffer

A23 / A27 / A28 / A29

Option 3256

370-4279
Daughter Board
501-5865 540-4298
FFB3 16/256
270-5349-07		 FRU Assembly
501-6441 540-5476
FFB3 16/256
270-5349-09		 FRU Assembly


UNIX ID: /dev/gfb0

Notes

  1. The minimum OS is Solaris 8 10/01.
  2. The XVR-1000 occupies one UPA graphics slot and one PCI slot.
  3. Daughter Board 370-4279 provides DVI-D and HD-15 connections.
  4. Frame Locking requires XVR-1000 >=540-4298-06 (501-5865-09).
  5. Use Y-Cable 530-2754 to drive multiple monitors from the stereo port.

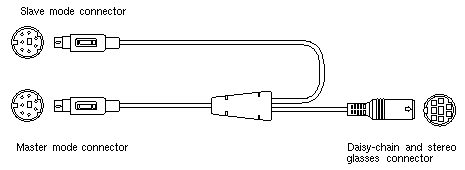

    Frame Lock Cable Assembly 530-2754

Reference

  1. ffbconfig (1M) manual page.
  2. XVR-1000 Graphics Accelerator Installation Guide, 816-1330.
