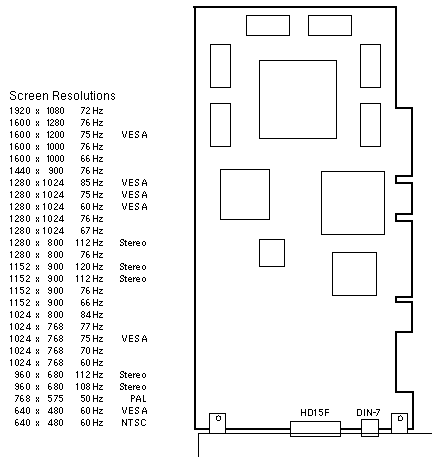

XVR-500 Graphics Accelerator

Codename: IFB Lite+

24-Bit Color Frame Buffer

A28 / A29 / A41
Sun Fire V480 / Sun Fire V880
Netra 20

Option 3685

375-3069
3.3/5V 64Bit 66MHz
IFB-Lite+/Expert3D Lite+


UNIX ID: /dev/fbs/ifb0

Notes

  1. The minimum OS is Solaris 8 plus the XVR-500 Installation CD.
  2. Option 3685 includes HD15 to DB13W3 Adapter 530-2917.
  3. X3685A is not supported in the Sun Fire V880 shipped with 750MHz USIII.
  4. The board is supported in either 33MHz or 66MHz PCI slots.
    If installed in a 33MHz slot, the board will run at 33MHz.

Reference

  1. ffbconfig (1M) manual page.
  2. XVR-500 Graphics Accelerator Installation Guide, 816-3028.
