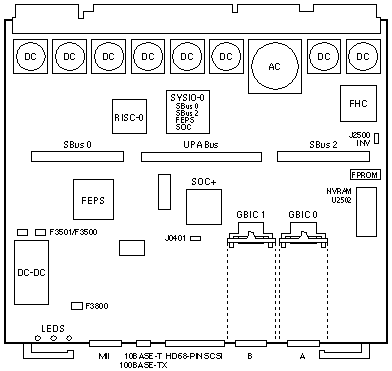

I/O Graphics Board with SOC+

Notes

1. The minimum Ex000 operating system is 2.5.1.
2. The minimum Ex000 OS is 2.5.1 HW: 11/97 if a GBIC is installed.
3. The minimum Ex500 OS is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
4. The Gigaplane runs at the speed of the slowest detected board.
5. The following cable types are supported:
   50/125 Multimode Fiber up to 500 meters
   62.5/125 Multimode Fiber up to 500 meters

E4500, E5500, and E6500 SBus Notes

1. Refer to Installation Guide 806-5239 to install Options 1098 and 1099.
2. SBus Blank Filler Panel 540-4566 of June 2000 is Option 1099.
3. SBus Card Thermal Baffle 330-3283 of May 2001 is Option 1098.
4. SBus Blank Filler Panel installation guidelines were changed between manual revisions 806-5239-10 and 806-5239-11.

FlashPROM Notes

1. Use the Flash PROM Programming Utility to update the FCode.
2. Use the prom-copy command (src dst prom-copy) to copy a flash PROM.


   ok 2 b prom-copy (copies from board 2 to board 11)

3. Use the update-proms command to synchronize the latest version of the flash PROM installed in the system to all boards of the same type.

NVRAM Notes

1. The Clock Board and I/O Board NVRAMs are automatically synchronized when the Clock Board NVRAM contents matches at least one I/O Board NVRAM.
2. Use the following OBP command to manually synchronize a new or replacement I/O Board to an existing Clock Board:


   ok copy-clock-tod-to-io-boards

3. Use the following OBP command to manually synchronize a new or replacement Clock Board to an existing I/O Board:


   ok (ioboard# in hex) copy-io-board-tod-to-clock-tod

References

1. Enterprise 3500 System Reference Manual, 805-2630.
2. Enterprise 4500/5500/6500 System Reference Manual, 805-2632.
3. SBus and Graphics I/O Boards Installation, 805-2704.
4. System Flash PROM Programming Guide, 802-5579.
5. Filler Panel and Thermal Baffle Installation Guide, 806-5239.
