I/O Board and System Controller

Sun Fire V1280 / Netra 1280

501-6012 501-6459

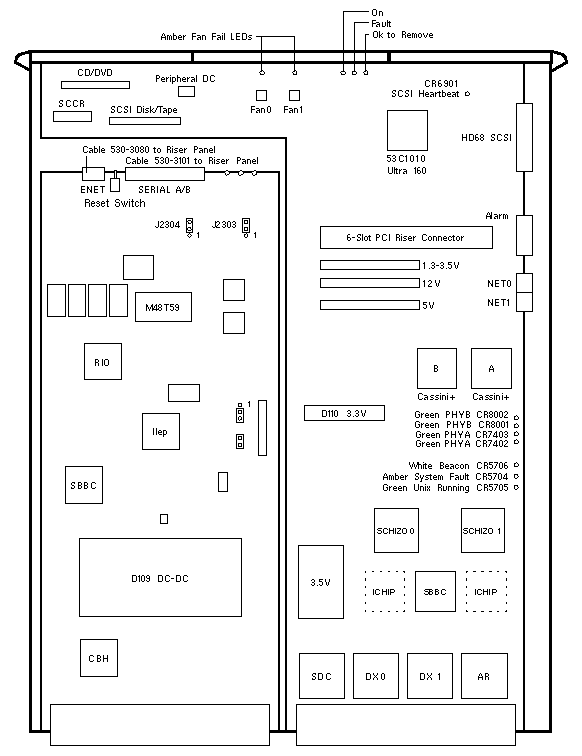

I/O Board System Controller
540-4967 540-5290 540-5564 540-5565
I/O SC Assembly
Sun Fire V1280		 FRU Assembly
Sun Fire V1280		 I/O SC Assembly
Netra 1280		 FRU Assembly
Netra 1280

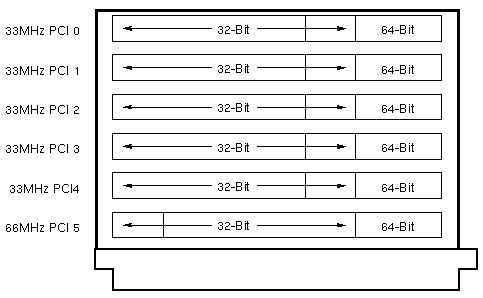

PCI Riser Assembly 540-4963 with PCI Riser 501-6013

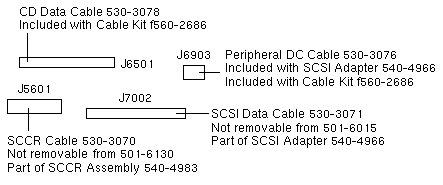

I/O Board Cable Conections

Sun Fire V1280 Codename: Lightweight 8

Notes

  1. The minimum operating system is Solaris 8 02/02.
  2. The I/O Board and System Controller slot is labeled IB6_SSC1.
  3. The I/O Board and System Controller includes a toothed rack and the chassis includes clutched pinions in the front of slot IB6_SSC1.
  4. The IB_SSC Assembly includes Top Cover/Door 540-5216, I/O Board 501-6012, System Controller 501-6459, PCI Riser 501-6013, Dual Serial Cable 530-3101, Ethernet Cable 530-3080, and two 540-5222 Fans.

References

  1. Sun Fire V1280 Service Manual, 816-0205.
  2. Sun Fire V1280 System Administration Guide, 816-0204.
  3. Sun Fire V1280 Site Preparation and Installation Guide, 816-0201.
