E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

Options 7021 / 7022 / 7023 / 7026

501-2652 501-2653 501-2654 501-5658

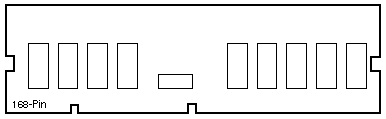

8MB 3.3V ECC
60ns DIMM
Option 7021
32MB 3.3V ECC
60ns DIMM
Option 7022
128MB 3.3V ECC
60ns DIMM
Option 7023
256MB 3.3V ECC
60ns DIMM
Option 7026

Notes

  1. Eight DIMMs form a bank.
  2. All DIMMs within a bank must be the same size.
  3. The first bank of memory can be either Bank 0 or Bank 1.
  4. Install one bank on each CPU/Memory board before installing the second bank on any board.
  5. Install the largest density banks first, then medium density banks, and finally the smallest density banks.
  6. The 256MB DIMMs require OBP >=3.2.23.
  7. The Solaris 2.5.1 prtdiag command displays incorrect memory capacity. Install Patch 104595-10.
  8. OBP 3.2v26 fixes 2GB memory bank BugID 4323635.

References

  1. Ultra Enterprise 3000 System Manual, 802-6051.
  2. Ultra Enterprise 4000/5000/6000 System Manual, 802-3845.
  3. DIMM Installation Guide, 802-5032.
