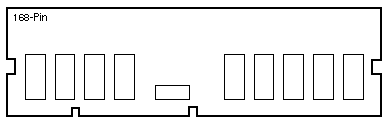

SPARCstation 4 / SPARCstation 5

Options 108 / 132

501-2470 501-2471
8MB 5.0V ECC
1Mx72 Fast Page
60ns DIMM
Option 108
32MB 5.0V ECC
4Mx66 Fast Page
60ns DIMM
Option 132

Memory Map

SS4 SOCKET SS5 SOCKET DIMM ADDRESS RANGE
None J0403 DIMM 7 0e000000 - 0fffffff
None J0402 DIMM 6 0c000000 - 0dffffff
None J0401 DIMM 5 0a000000 - 0bffffff
J0305 J0400 DIMM 4 08000000 - 09ffffff
J0304 J0303 DIMM 3 06000000 - 07ffffff
J0303 J0302 DIMM 2 04000000 - 05ffffff
J0302 J0301 DIMM 1 02000000 - 03ffffff
J0301 J0300 DIMM 0 00000000 - 01ffffff

Notes

  1. Install the highest capacity DIMM in Slot 0 under Solaris 1.x.
  2. The minimum memory requirement is one DIMM in Bank 0.
  3. The SS4 and SS5 use a 66-bit parity protected memory subsystem.
  4. If a memory error occurs and the DIMM location is not reported, use the MFAR (memory fault address register) value as the physical address of the memory error.

References

  1. SPARCstation 4 Service Manual, 802-1529.
  2. SPARCstation 5 Service Manual, 801-6396.
