Sun Blade 100
(A36)
Options 6991 / 6992 / 6993
| 370-4149 |
370-4150 |
370-4151 |

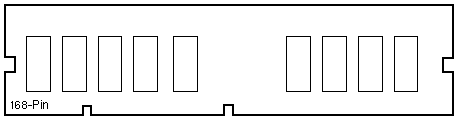

128MB 3.3V ECC 10ns
PC133 SDRAM DIMM
Option 6991 |
256MB 3.3V ECC 10ns
PC133 SDRAM DIMM
Option 6992 |
512MB 3.3V ECC 10ns
PC133 SDRAM DIMM
Option 6993 |
System Board Memory Map
| DIMM |
UltraSPARC IIe
512MB Addressing |
UltraSPARC IIi
1GB Addressing |
| U5 |
DIMM 3 |
60000000-7fffffff |
c0000000-ffffffff |
| U4 |
DIMM 2 |
40000000-5fffffff |
80000000-bfffffff |
| U3 |
DIMM 1 |
20000000-3fffffff |
40000000-7fffffff |
| U2 |
DIMM 0 |
00000000-1fffffff |
00000000-3fffffff |
|
Sun Blade 100 Codename: Grover |
Notes
- The minimum memory requirement is one DIMM in U2.
- The memory installation sequence is U2, U3, U4, and U5.
- Each bank addresses 512MB of memory with 500MHz UltraSPARC.
- Each bank addresses 1GB of memory with >=550MHz UltraSPARC.
- OBP <=4.5v0 incorrectly reports errors as DIMM1 (U2) to DIMM4 (U5).
- OBP 4.5v9 correctly reports errors as DIMM0 (U2) to DIMM3 (U5).
UltraSPARC Notes
- The 450-700MHz processors were originally named UltraSPARC IIe.
- The 550-700MHz processors were renamed UltraSPARC IIi in 2002.
- The System Board was designed for 450-700MHz processors.
- The Sun Blade 100 was only sold with 500MHz UltraSPARC IIe.
- The 450-550MHz UltraSPARC IIe addresses 512MB per bank.
- The 550-700MHz UltraSPARC IIi addresses 1GB per bank.
Reference
Sun Blade 100 Service Manual, 806-3416.
|
