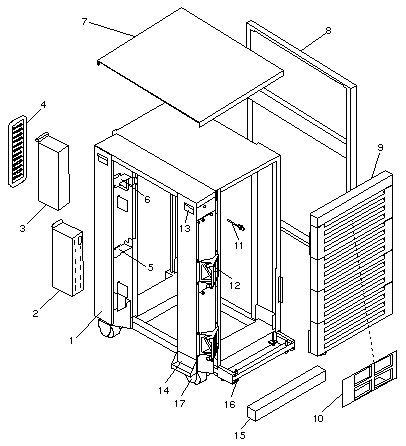

56-inch Enterprise Expansion Cabinet

956

CODE PART # DESCRIPTION
1
-
-
540-2809
540-2591
340-3360
Rack Assembly
Frame Assembly
Frame
2
2
300-1290
300-1403
Universal Power Sequencer
Universal Power Sequencer
3
-
540-2709
540-3271
Fan Tray Assembly (-02 with Fingerguards)
Fingerguard Installation Kit for 540-2709-01
4 340-3267 Fan Tray Rear Cover
5 340-3405 Fan Tray Mounting Bracket, Bottom
6 340-3434 Fan Tray Mounting Bracket, Top
7 340-3352 Top Panel, Medium Grey
8 340-3354 Side Panel, Medium Grey
9 540-2810 Door Assembly with 4 Vented Panels
10 540-2746
330-1983
330-1982
Top Door Panel Assembly with Blank Filler Insert
Blank Filler Panel Insert
Filler Panel Insert with 4 Tape Drive Cutouts
11 540-2393 Keyswitch Assembly w Key 330-2014
12 340-3272 Door Hinge Bracket
13 340-1885 Side Restraint Bracket, Upper
14 340-1886 Side Restraint Bracket, Lower
15 340-3355 Anti-Tilt Panel, Medium Grey
16 230-1418 Leveler Foot
17 240-1717 Caster
NS 340-3394 Front Door Catch
NS 340-3353 Screw Mounted Rear Panel, Medium Grey
NS 595-4389 Hinged Rear Panel Assy (UG-ENT-BKDOOR = 556-3386)
NS 530-1619 Ground Cable
NS 530-2234 Fan Sense Cable to AC Power Sequencer
NS 530-2236 Remote Keyswitch Control Cable, 3.2M
NS 530-2284 Keyswitch Cable Extension, Single Sequencer
NS 530-2369 Keyswitch Cable Extension, Dual Sequencers
