Rack Mount Kit

SS1000 / SPARCstorage Array

965
56-inch Cabinet
Rack Mount Kit

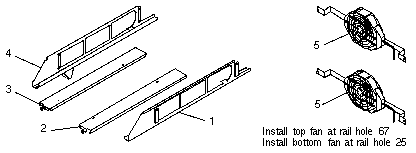

CODE PART # DESCRIPTION
-
NS
NS
1
2
3
4
NS
NS		 595-3382
240-1953
240-2184
340-3016
340-3015
340-3017
340-3018
530-1343
530-1351		 56" Rack Mounting Kit, Option X965A
#10-32 × 1/2" Screw (×16)
M6 1.0 × 8mm Screw (×4)
Rack Mounting Bracket, Left
Chassis Mounting Bracket, Left
Chassis Mounting Bracket, Right
Rack Mounting Bracket, Right
IEC 320 - Reverse IEC 320 Power Cord, 240V
IEC-320-c13 to NEMA 6-15p, 10A/250V, 2M
5 540-1929 230V Fan Assembly (not included with X965A)
5 540-1930 240V Fan Assembly (not included with X965A)

801-7161 Rack Mount Kit Installation Manual

Notes

  1. The Rack Mount Kit is not designed to fit standard 19-inch racks.
  2. Install up to four SPARCserver 1000, disktower 1000, or SPARCstorage Array chassis in the 56" Rack.
  3. One fan is required when two chassis are in adjacent positions.
  4. Two fans are required when two chassis are in non-adjacent positions.
  5. Two fans are required when more than two chassis are installed.
  6. Fans are available from the Spares Price List.
  7. The rails are not designed to withstand shock and vibration encountered during shipping of a configured rack. Sun did not ship factory configured racks with these rails.
