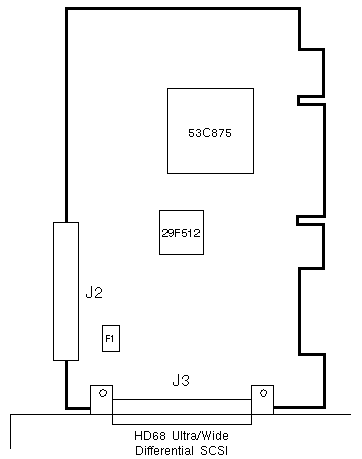

Differential Ultra/Wide SCSI Controller

StorEdge L11000

370-3732
Symbios SYM8751D
3.3V/5V 32-Bit 33MHz PCI

Notes

  1. Part numbers 370-3521 and 370-3731 are identical.
  2. The ribbon cable to J3 does not have a Sun part number.

References

  1. StorEdge L11000 Service CD-ROM, 704-6527.
  2. StorEdge L11000 Service Manual, 704-7276.


Robotic Controller Board

StorEdge L11000

370-3728
Controller w Memory ATL 6221710
Memory Module ATL 6220340

Notes

  1. The Dallas NVSRAM is not socketed.
  2. Connector J1 is covered by a 10-Pin plug.
  3. The Memory Module does not have a Sun part number.

References

  1. StorEdge L11000 Service CD-ROM, 704-6527.
  2. StorEdge L11000 Service Manual, 704-7276.


Actuator Driver Board

StorEdge L1000

370-3730 370-3731
Actuator Driver #0
Installed at J1/J2
ATL 6220310
Actuator Driver #1
Installed at J3/J4
ATL 6220310

Note

Drivers #0 and #1 are identical except for configuration IC U1.

References

  1. StorEdge L11000 Service CD-ROM, 704-6527.
  2. StorEdge L11000 Service Manual, 704-7276.

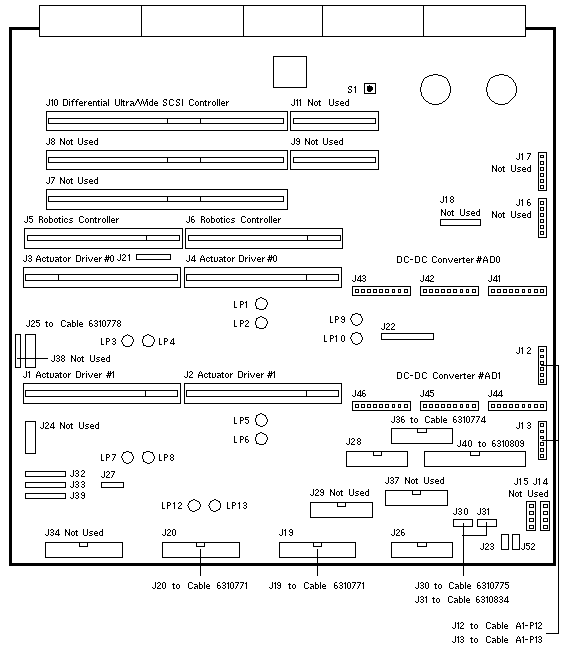

6-Slot Backplane

StorEdge L11000

370-3733
ATL 6310520

Notes

  1. No part number is printed on the flexible cables to J21, J22, J27, J32, J33, and J39.
  2. No part number is printed on the ribbon cables to J26 and J29.
  3. No part number is printed on the 2-wire cables to J23 and J52.

References

  1. StorEdge L11000 Service CD-ROM, 704-6527.
  2. StorEdge L11000 Service Manual, 704-7276.
