Sun Rack 900

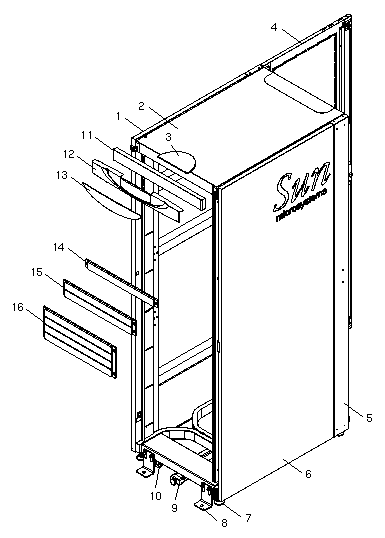

CODE	PART #	DESCRIPTION
1 1	595-6712 596-3497	Sun Rack 900, Option SR9-XKL038A-IP Sun Rack 900, Option SR9-KL038A-IP
1 NS NS NS NS 2 3	540-5352 240-4254 345-1416 345-1417 345-5034 370-5564 540-5479	Cabinet Assembly Key T-Wrench 1/4" × 50 mm #3 Phillips Bit 13 mm / 19 mm Wrench Top Panel Assembly Backlight Assembly
1 4 5 6 7 8 9 10	370-5034 None None None None None None None	Cabinet Frame Rear Door, 612-693910H Extension Side Panel, 612-693912D Side Panel, 612-691945K Leveler Foot, 612-695337 Shipping Bolt Down Bracket, 612-694274E Antitip Bar, 612-694371G Heavy Duty Caster, 612-598562
11	330-3554	Top Hinge Cover
12	540-5478	Logo Holder Assembly
13	330-3555	Logo Insert
NS 14 15 16	595-6714 540-5349 540-5350 540-5351	Filler Panel Kit, Option 6826 1RU Filler Panel 2RU Filler Panel 4RU Filler Panel
NS -	595-6715 180-2005	Domestic AC Power Cable, Option 6828 Domestic AC Power Cable, 2.5M, NEMA L6-20P
NS -	595-6716 180-2004	International AC Power Cable, Option 6829 International AC Power Cable, 2.5M, IEC309
	816-6386 816-6387	Sun Rack 900 Installation Manual Sun Rack 900 Service Manual

PART #	DESCRIPTION
595-6717 340-7605 340-7607 340-7608 816-7771	StorEdge T3 4U Mounting Kit, Option 6836 Adapter Rail Left Rail Right Rail T3 Rack Mount Installation Manual
595-6718 340-7605 340-7587 340-7588 816-7771	StorEdge T3 7U Mounting Kit, Option 6837 Adapter Rail Left Rail Right Rail T3 Rack Mount Installation Manual
595-6719 340-7595 340-7596 340-7597 340-7606 816-7772	StorEdge A1000/D1000 Mounting Kit, Option 6838 Left Rail Right Rail Tray Adapter Rail A1000/D1000 Rack Mount Installation Manual
595-6720 340-7652 340-7653 340-7654 340-7655 816-7769	StorEdge D240 Mounting Kit, Option 6839 Left Rail Right Rail Adapter Front Mouting Bracket D240 Rack Mount Installation Manual
595-6721 340-7635 340-7636 370-5622 816-7774	Netra 20 Mounting Kit, Option 6845 Front Bracket Rear Bracket Rack Slide Netra 20 Rack Mount Installation Manual
595-6722 340-7638 340-7639 340-7641 340-7642 340-7643 370-5622 816-7773	Netra t 1400 Mounting Kit, Option 6846 Front Bracket Rear Bracket Nut Plate Bracket Left Adapter Bracket Right Adpater Bracket Rack Slide Netra t 1400 Rack Mount Installation Manual
595-6723 340-7561 340-7562 340-7563 340-7575 816-7776	RTU Mounting Kit, Option 6847 Bottom Support Bracket Bottom Support Rail Top Support Bracket Top Support Rail RTU Rack Mount Installation Manual
595-6724 340-7630 340-7631 340-7632 340-7633 340-7634 816-7775	Sun Fire 4800 Mounting Kit, Option 6848 Top Bracket Bottom Bracket Left Bracket Right Bracket Front Bracket Sun Fire 4800 Rack Mount Installation Manual
595-6725 240-4252 240-4298 370-5647 540-5478 816-7767	Front Door Kit, Option 6825 Hinge Pin Latch Bracket Front Door Logo Holder Assembly Front Door Installation Manual
595-6727 370-5653 370-5654 816-7768	EMI Containment Kit, Option 6835 Top EMI Panel Bottom EMI panel EMI Kit Installation Manual
595-6741 300-1546 370-4946 370-4948 370-5651 370-5652 595-6726 180-2007 816-7766	Power Distribution System, Option 6849 Dual Input, 24 Output AC Power Sequencer Dual Input, 24 Output AC Power Strip AC Inlet Power Panel Upper Power Cords, Inlet 180-2043 + Outlet 180-2045 Lower Power Cords, Inlet 180-2044 + Outlet 180-2046 Power Jumper Cable 20 Pack, Option 6827 10A Power Jumper Cable Power Distribution System Installation Manual
