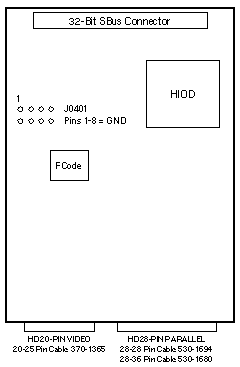

SPARCprinter Printer Card

Sun-4/15/30/40/50/60/65/75
SS5 / SS10 / SS20 / SS600 / SS1000 / SC2000
A11 / A12 / A14

Options 1130 / SPRN-400
501-1540 / 501-1910


Power:

0.9 Amps @ +5Vdc
4.5 Watts

Notes

  1. The minimum operating system requirement is SunOS 4.1.
  2. NeWSprint is not supported in Solaris 2.6.
  3. The Sun-4/60 requires CPU EPROM 1.3 Version 3.
  4. One-piece Backpanel 340-2302-01 does not fit on 501-1910.
  5. Two-piece Backpanel 340-2302-02 does not fit on 501-1540.
  6. Two-piece Backpanel 340-2964-01 does not fit on 501-1910.
  7. Use two-piece Backpanel 340-2964-01 on 501-1540 if removal of the upper part of the backpanel is required.
  8. This card is not compatible with Slot-3 of the Sun-4/60/65.

Reference:

SBus Printer Card Installation Guide, 800-4786.

Connector Pinouts

HD20-Pin Female Video Connector
PIN SIGNAL PIN SIGNAL
1 VCLK+ 11 VCLK-
2 LSYNC+ 12 LSYNC-
3 STATUS+ 13 STATUS-
4 PSYNC+ 14 PSYNC-
5 Do not use 15 Do not use
6 Do not use 16 Do not use
7 Do not use 17 Do not use
8 CBUSY- 18 CBUSY+
9 CMD+ 19 CMD-
10 VDATA+ 20 VDATA-

HD28-Pin Female Parallel Connector
PIN SIGNAL PIN SIGNAL
1 DATA 0 15 Do not use
2 DATA 1 16 Do not use
3 DATA 2 17 Do not use
4 DATA 3 18 Do not use
5 DATA 4 19 Do not use
6 DATA 5 20 GND
7 DATA 6 21 GND
8 DATA 7 22 Do not use
9 GND 23 GND
10 DS 24 GND
11 BUSY 25 ACK
12 RESET 26 OUT/IN
13 AFXT 27 PE
14 SELECT 28 ERROR
