12-24GB 4 mm DDS-3 Tape Drive

A11 / A12 / A14 / A20 / A25 / A26 / A27 / A28 / A29
E150 / E220R / E420R
Netra ft 1800 / Netra t 1120/1125 / Netra t 1400/1405 / Netra ct 400/800
E3000 / E4000 / E5000 / E6000 / E3500 / E4500 / E5500 / E6500
Sun Fire V880

Options 6280 / 6281 / 6282 / 6283 / 6284 / 6286 / 6912 / 6930
TAP4MM-011A / TAP4MM-021A

370-2376 370-2377 540-4016 540-4409
HP C1537-00626
Medium Grey Bezel		 HP C1537-00625
Light Grey Bezel		 Netra ft 1800 FRU
RMM Tray with
CD-ROM + DDS-3		 ct 400/800 FRU
RMM Tray with
370-2376

Front View

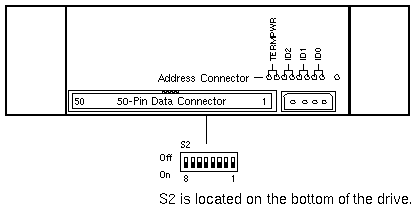

Rear View

Notes

  1. The minimum operating system is Solaris1.1.2 or Solaris 2.4.
  2. Switch S2 is disabled by the Sun firmware.
  3. An Adapter Cable is attached to the Address Connector.
  4. The Adapter Cable is provided by the drive manufacturer.
  5. The Blank Data Tape part number is 370-2378-01.
  6. The Cleaning Kit part number is 370-1613-01.
  7. Firmware update tape L706 is part number 370-3376-01.

Reference

DDS-3 Tape Drive Installation and User's Guide, 802-7791.
