150MB 1/4" Tape Drive

Sun-4/330/370/390/470/490
SS630MP / SS670MP / SS690MP / SC2000

Options 539 / 565 / 660

370-1205 370-1206 370-1218 370-1246
Archive 2150S
Half-Height
Black Bezel		 Archive 2150S
Full-Height
Black Bezel		 Archive 2150S
Half-Height
Custom Bezel		 Archive 2150S
Full-Height
Light Grey Bezel

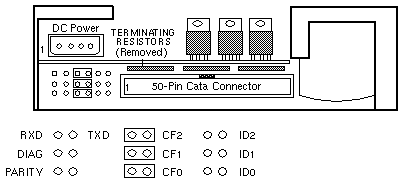

Rear View

JUMPER SETTING DESCRIPTION
RXD/TXD Out Serial Port
DIAG Out Normal/Diag
Parity Out Parity (in for 370-1246)
CF2,CF1,CF 0 In Disconnect Transfer Size = 32K
ID2,ID1,ID0 As required SCSI ID

Flex Cable
In the Desktop Tape Pack, remove the SCSI ID jumpers,
orient the Flex Cable as shown, and plug it into the
SCSI ID jumper block.

Address Select Switch Cable
In the External Storage Module, orient the Address Select
Switch Cable as shown, and plug it into the SCSI ID
jumper block.

Note

The Cartridge Tape part number is 370-1203-01.

Reference

150MB 1/4-Inch Tape Drive Configuration Manual, 813-2076.
