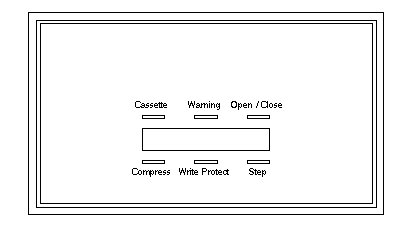

20GB 4 mm DDS-1 Autoloader

Address Select Switch Cable

In the Multi-Tape Backup Tray and SC2000, orient the Address Select Switch Cable as shown, and plug it into JP6.

Note

Remove the mylar sheet from the bottom of the drive before installation.

Reference

Product Note, 801-6234.

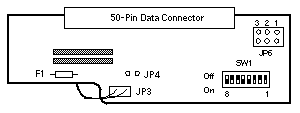

Jumper and Switch Settings

JP4 PINS SETTING DESCRIPTION 1-2 Out Disable TERMPWR to bus 1-2 In Enable TERMPWR to bus

JP6 SCSI ID 3 2 1 0 Out Out Out 1 Out Out In 2 Out In Out 3 Out In In 4 In Out Out 5 In Out In 6 In In Out

SW1 SWITCH SETTING DESCRIPTION 1 Off Enable SCSI ID 0 = 20 2 Off Enable SCSI ID 1 = 21 3 Off Enable SCSI ID 2 = 22 4 On Enable SCSI-2 mode 5 On Enable parity 6 Off Enable data compression 7 Off Reserved for factory use 8 On Enable power-on self test

Switch Settings

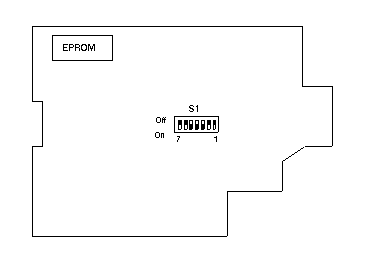

LMJB0178 PCB S1 SWITCH SETTING DESCRIPTION 1 2 Off* Off* English language display 1 2 Off On French language display 1 2 On On Spanish language display 1 2 On Off German language display 3 3 Off On* Stop after last tape Restart at Tape 1 after last tape 4 4 On* Off High intensity display Low intensity display 5 On* Enable power-on self test 6 Off Not used 7 Off Not used * Default settings

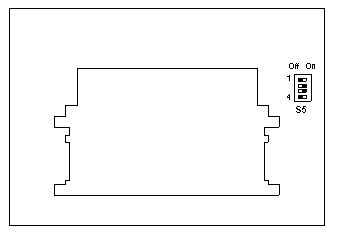

Auto-Loader S5 SWITCH SETTING DESCRIPTION 1 Off* On Horizontal character display Vertical character display 2 Off On* Do NOT load tape on power-up Load tape on power-up 3 Off On* Stop after last tape Restart at first tape after last tape 4 Off Not used * Default settings

Notes

1. The minimum operating system is Solaris 2.2.
2. Solaris 2.2 reads and writes in low-density or high-density mode.
3. The 4-Tape Magazine part number is 370-1683-01.
4. The Blank 90 Meter Tape part number is 370-1612-01
5. The Cleaning Kit part number is 370-1613-01.
6. Firmware update tape 4.CDA-424 is part number 370-2867-01.
7. Firmware update tape 4.CDB-424 is part number 370-3270-01.

References

1. 20 Gbyte 4mm Tape Auto-Loader Installation Manual, 801-4976.
2. 20 Gbyte 4mm Tape Auto-Loader User's Guide, 801-4977.
