24X CD-ROM

A21 / A22

Option 6170

370-3319
Goldstar CRD-8240B
ATAPI/IDE Interface
1 5/8" Height

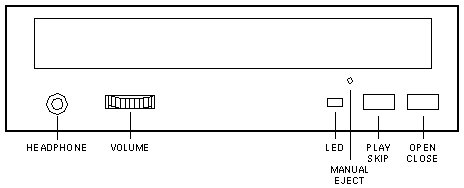

Front View

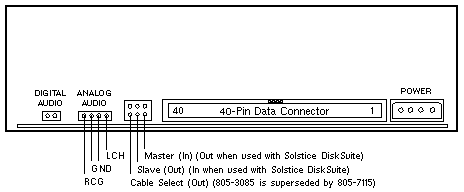

Rear View

The boot cdrom command will not work with the default device alias when the drive is set to slave. Change the OBP device alias to boot from CD-ROM.

CD-ROM Connected to the Primary Channel
nvalias cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@1,0:f

CD-ROM Connected to the Secondary Channel
nvalias cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@3,0:f

References

  1. Ultra 5/10 Service Manual, 805-0423.
  2. Ultra 5 Service Manual, 805-7763.
  3. Ultra 10 Service Manual, 805-7764.
  4. CD-ROM and Hard Drive Installation Guide, 805-3085.
  5. CD-ROM and Hard Drive Installation Guide, 805-7115.


24X CD-ROM

Netra T1 / Netra t1 / Sun Fire V100
Sun Fire V120 / Netra 120

Options 6971 / 7088

370-4278
Teac CD-224E-B93
ATAPI/IDE Interface
Slimline 1/2" Height

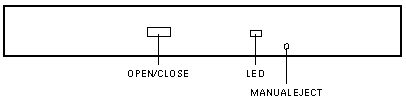

Front View

Rear View

Notes

  1. 370-4278 is not Field Replaceable on the Sun Fire V100.
  2. Option 6971 includes the CD-ROM, Cable, and Paddleboard.
  3. FRU 540-4358 includes the CD-ROM, Cable, and Paddleboard.
  4. FRU F370-4278 includes the CD-ROM, Cable, and Paddleboard.
  5. FRU F370-4344 includes the Cable and Paddleboard.
