32X CD-ROM
A21 / A22
Option 6171
| 370-3694 |
370-3694 |
Goldstar CRD-8322B
ATAPI/IDE Interface
1 5/8" Height |
Goldstar CRD-8324B
ATAPI/IDE Interface
1 5/8" Height |

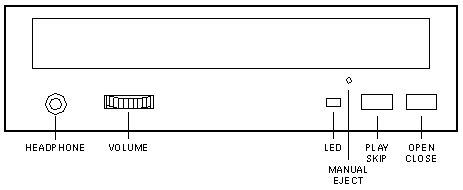

| Front View |
 |
|

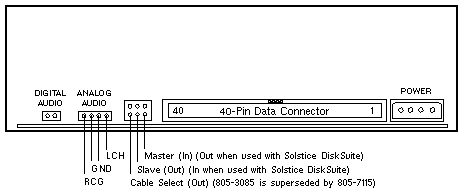

| Rear View |
 |
The boot cdrom command will not work with the default device
alias when the drive is set to slave. Change the OBP device alias to boot from
CD-ROM.
- CD-ROM Connected to the Primary Channel
nvalias cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@1,0:f
- CD-ROM Connected to the Secondary Channel
nvalias cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@3,0:f
References
Ultra 5/10 Service Manual, 805-0423.
-
Ultra 5 Service Manual, 805-7763.
-
Ultra 10 Service Manual, 805-7764.
-
CD-ROM and Hard Drive Installation Guide, 805-3085.
-
CD-ROM and Hard Drive Installation Guide, 805-7115.
|
