Triple Density Floppy

Sun-4/15/30/40/50/60/65/75
SS4 / SS5 / SS10 / SS20

Options 554 / 556 / 560

370-1420 370-1419 540-2509
Sony MP-F420-6-D10
Sun-4/60/65/75
SS10
4 mm Black Bezel
Sony MP-F420-6-A10
Sun-4/15/30/40/50
SS4 / SS5 / SS20
8 mm Black Bezel
Sony MP-F420-6-A10
SS4 / SS5 / SS20
FRU Assembly

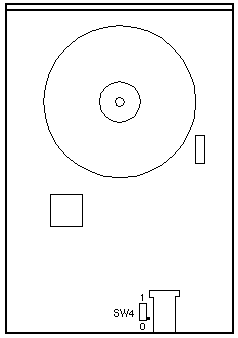

Bottom View

Rear View

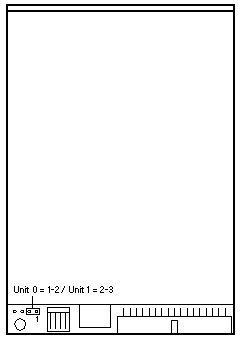

Notes

  1. Use #6-32 mounting screws.
  2. Set the drive to unit 0 on switch SW4.
  3. This drive supports 1MB, 1.6MB, and 2MB unformatted capacities.

Reference

Floppy Installation Manual, 801-6197.

Triple Density Floppy

Sun-4/15/30/40/50/60/65/75
SS4 / SS5 / SS10 / SS20
A11 / A12 / A14

Options 554 / 556 / 560 / 6001 / 6003

370-2151-01 370-2252
Sony MPF520-7-D10
Black Bezel
Sony MPF520-7-D10
Light Grey Bezel

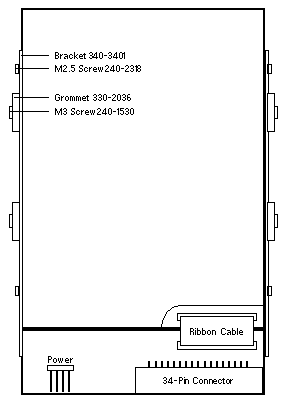

Bottom View

Rear View

Notes

  1. Use 3 mm mounting screws.
  2. The default drive address is Unit 0.
  3. This drive supports 1MB, 1.6MB, and 2MB unformatted capacities.
  4. SPARCstation 20 and Ultra 2 multi-processor systems require DC Power Filter cable 530-2316.

Triple Density Floppy

SS4 / SS5 / SS20

Option 6002

370-2302 540-2854
Sony MPF720-4 FRU Assembly

Note

  1. This drive supports 1MB, 1.6MB, and 2MB unformatted capacities.
  2. This drive is not compatible with Chassis 340-2915.
  3. This drive is compatible with Chassis 340-3397.
  4. Chassis 340-3397 was phased into production in July 1996.
  5. Chassis 340-2915 was phased out of production in Nov/Dec 1996.

Triple Density Floppy

A16 / A20 / A23 / A25 / A26 / A27 / A28 / A29

Options 6004 / 6005 / 6006

370-2729 370-2730
Sony MPF920E
Light Grey Bezel
Sony MPF920E
Medium Grey Bezel

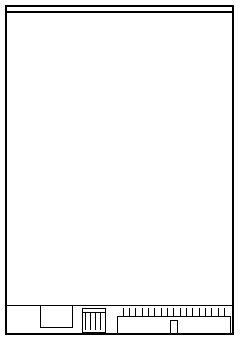

Top View

Rear View

Notes

  1. Use 3 mm mounting screws.
  2. The default drive address is Unit 0.
  3. This drive does not support auto ejection.
  4. This drive supports 1MB, 1.6MB, and 2MB unformatted capacities.

Triple Density Floppy

A11 / A12 / A14 / E150

Options 6001 / 6003

370-3212
Sony MPF920E
Black Bezel

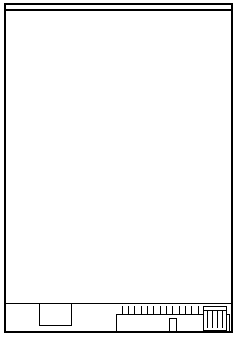

Top View

Rear View

Notes

  1. Use 3 mm mounting screws.
  2. The default drive address is Unit 0.
  3. This drive supports 1MB, 1.6MB, and 2MB unformatted capacities.

Triple Density Floppy

A36 / A41

370-4211
Mitsumi D53M3
Medium Grey Bezel

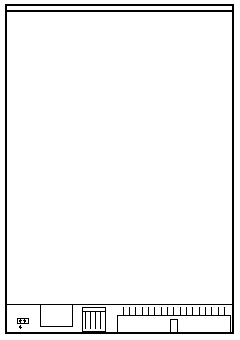

Top View

Rear View

Notes

  1. Use 3 mm mounting screws.
  2. The default drive address is Unit 0.
  3. This drive supports 1MB, 1.6MB, and 2MB unformatted capacities.
