48X CD-ROM
A21 / A22 / A36 / A41
Option 5246
| 370-4152 |
370-4353 |
Sun Blade 100
LiteOn LTN-485S
LiteOn LTN-486S
ATAPI/IDE Interface
Medium Grey Bezel
1 5/8" Height |
Ultra 5/10 Option 5246
Goldstar CRD-8483B
ATAPI/IDE Interface
Light Grey Bezel
1 5/8" Height |

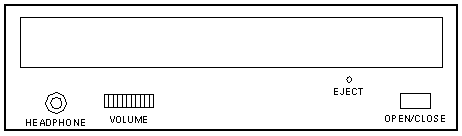

| Front View CRD-8483B |
 |
|

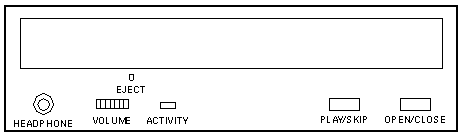

| Front View LTN-485S |
 |
|

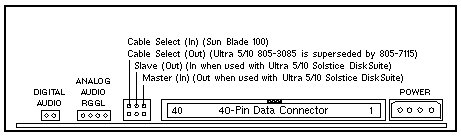

| Rear View |
 |
The Ultra 5/10 boot cdrom command will not work with the
default device alias when the drive is set to slave. Change the OBP device
alias to boot from CD-ROM.
- CD-ROM Connected to the Primary Channel
nvalias cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@1,0:f
- CD-ROM Connected to the Secondary Channel
nvalias cdrom /pci@1f,0/pci@1,1/ide@3/cdrom@3,0:f
References
Ultra 5/10 Service Manual, 805-0423.
-
Ultra 5 Service Manual, 805-7763.
-
Ultra 10 Service Manual, 805-7764.
-
CD-ROM and Hard Drive Installation Guide, 805-3085.
-
CD-ROM and Hard Drive Installation Guide, 805-7115.
-
Sun Blade 100 Service Manual, 806-3416.
|
