72-144GB 4 mm DDS-3 Autoloader

Options 6292 / 6293 / TAP4MM-031A

370-2379 370-2380
HP C1557-00626
Medium Grey Bezel		 HP C1557
Light Grey Bezel

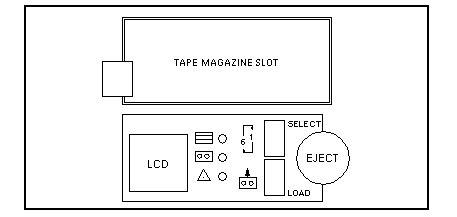

Front View

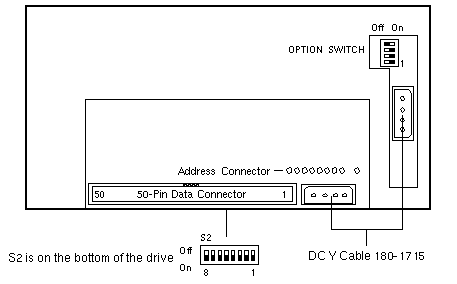

Rear View

Option Switch

Settings
VALUE 1 2 3 4
0x1h On Off Off Off
0x2h * Off On Off Off
0x6h Off On On Off
0x7h ** On On On Off
* Circular mode. Requires firmware U709.
** Default setting

Options
OPTION 0x1h 0x6h 0x7h*
Auto-Stack Enabled Disabled Disabled
Auto-Eject Enabled Disabled Disabled
Allow Resequencing Disabled Enabled Enabled
LUN 1 Magazine Ready Disabled Enabled Enabled
LUN 0 Drive Inquiry Disabled Enabled Disabled
* The default setting is 0x7h

Notes

  1. The minimum operating system is Solaris 1.1.2 or Solaris 2.4.
  2. Switch S2 is disabled by the Sun firmware.
  3. The Option Switch is read at power on.
  4. An Adapter Cable is attached to the Address Connector.
  5. The Adapter Cable is provided by the drive manufacturer.
  6. The Blank Data Tape part number is 370-2378-01.
  7. The Magazine part number is 370-2381-01.
  8. The Cleaning Kit part number is 370-1613-01.
  9. Firmware update tape U709 is part number 370-3377-01.

Reference

DDS-3 Autoloader Installation and User's Guide, 802-7901.
