7-14GB 8 mm Tape Drive
SS1000 / SC2000 / A11 / A12 / A14
E3000 / E4000 / E5000 / E6000 / E5500 / E6500
Options 841 / 843 / 844 / 845 / 846
Options 6201 / 6202 / 6203 / 6204 / 6205 / 6206 / 6207
| 370-1856 |
370-1857 |
370-1881 |
Exabyte EXB-8505XL
Rectangular LED
Black Bezel |
Exabyte EXB-8505XL
Round LED
Backup Pack Bezel |
Exabyte EXB-8505XL
Rectangular LED
EXB-210 Bezel |
| 370-1922 |
370-2200 |
Exabyte EXB-8505XL
Rectangular LED
Light Grey Bezel |
Exabyte EXB-8505XL
Rectangular LED
Medium Grey Bezel |

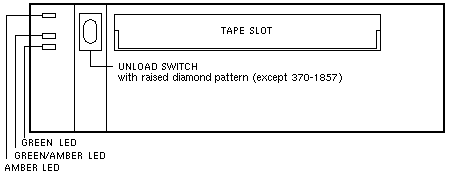

| Front View |
 |
|

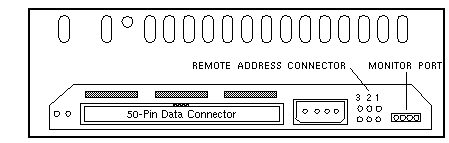

| Rear View |
 |
 |

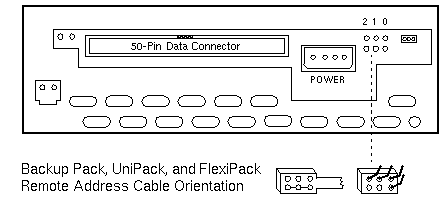

In the Desktop Backup Pack, orient the Flex Cable
as shown, and plug it into the Remote Address Connector.
|
 |
In the Multi-Tape Backup Tray, SC2000, and SPARCstorage
UniPack, orient the Address Select Switch Cable as shown,
and plug it into the remote address connector.
|
|
Power
- 1.6 Amps @ +5Vdc
- 0.6 Amps @ +12Vdc
- 15.2 Watts
Jumper Settings and LED Codes
| Remote Address Connector |
| SCSI ID |
2 |
1 |
0 |
|
SCSI ID |
2 |
1 |
0 |
| Target 0 |
Out |
Out |
Out |
Target 4 |
In |
Out |
Out |
| Target 1 |
Out |
Out |
In |
Target 5 |
In |
Out |
In |
| Target 2 |
Out |
In |
Out |
Target 6 |
In |
In |
Out |
| Target 3 |
Out |
In |
In |
|
|
|
|
|
|
| LED Codes |
| LEDs |
POST
PART 1 |
POST
PART 2 |
POST
FAILED |
READY
NO TAPE |
READY
TAPE IN |
NORMAL
MOTION |
| TOP |
On |
On |
Fast |
Off |
Off |
Off |
| MIDDLE * |
On |
Random |
Random |
Random |
Random |
Random |
| BOTTOM |
On |
Off |
Off |
Off |
On |
Slow |
|
| LEDs |
Hi-SPEED
MOTION |
SCSI
RESET |
ERROR |
CLEANING
NEEDED |
CLEANING
TAPE IN |
| TOP |
Off |
On |
Slow |
Fast |
Off |
| MIDDLE * |
Random |
Random |
Random |
Random |
Random |
| BOTTOM |
Fast |
On |
Off |
Fast |
Slow |
* Green - tape is in uncompressed format.
* Amber - tape is in compressed format.
* OFF - drive is not connected to the SCSI Bus.
Flashing slow and fast if a tape is loaded.
Slow LED = 1 flash per second (0.96Hz)
Fast LED = 4 flashes per second (3.76Hz)
Random LED = flash rate varies with SCSI Bus activity
|
Notes
- The minimum operating system is Solaris 1.1.1.
- Cleaning is required after every 30 hours of tape motion.
- The Cleaning Kit part number is 370-2344-01.
- The 112 Meter Tape part number is 370-1298-01.
- The 160 Meter XL Tape part number is 370-1858-01.
- Firmware 07T0 update tape is part number 370-3235-01.
- The E3000 and E4000 Option 6213 replaced 6206 in March 1997.
- The E3500 and E4500 were introduced in April 1998.
- Option 6206 is not price listed for the E3500 and E4500.
Reference
14Gbyte 8mm Tape Drive Installation Manual, 802-1849.
A11 / A12 / A14 / A20 / A25 / A26 / A27 / E220R / E420R
E3000 / E4000 / E3500 / E4500
Options 6208 / 6209 / 6210 / 6211 / 6212
6213 / 6227 / 6228 / 6229
TAP8MM-010A / TAP8MM-020A
| 370-2881 |
370-2882 |
370-3128 |
Exabyte
EXB-8705DX
Light Grey Bezel |
Exabyte
EXB-8705DX
Medium Grey Bezel |
Exabyte
EXB-8705DX
EXB-210 Bezel |

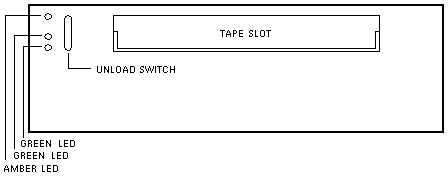

| Front View |
 |
|
| Rear View |
 |
Jumper Settings and LED Codes
| Remote Address Connector |
| SCSI ID |
2 |
1 |
0 |
|
SCSI ID |
2 |
1 |
0 |
| Target 0 |
Out |
Out |
Out |
Target 4 |
In |
Out |
Out |
| Target 1 |
Out |
Out |
In |
Target 5 |
In |
Out |
In |
| Target 2 |
Out |
In |
Out |
Target 6 |
In |
In |
Out |
| Target 3 |
Out |
In |
In |
|
|
|
|
|
|
| LED Codes |
| LEDs |
POST
PART 1 |
POST
PART 2 |
POST
FAILED |
READY
NO TAPE |
READY
TAPE IN |
NORMAL
MOTION |
| TOP |
On |
On |
Fast |
Off |
Off |
Off |
| MIDDLE * |
On |
Random |
Random |
Random |
Random |
Random |
| BOTTOM |
On |
Off |
Off |
Off |
On |
Slow |
|
| LEDs |
Hi-SPEED
MOTION |
SCSI
RESET |
ERROR |
CLEANING
NEEDED |
CLEANING
TAPE IN |
| TOP |
Off |
On |
Slow |
Fast |
Off |
| MIDDLE * |
Random |
Random |
Random |
Random |
Random |
| BOTTOM |
Fast |
On |
Off |
Fast |
Slow |
* OFF - drive is not connected to the SCSI Bus.
Flashing slow and fast if a tape is loaded.
Slow LED = 1 flash per second (0.96Hz)
Fast LED = 4 flashes per second (3.76Hz)
Random LED = flash rate varies with SCSI Bus activity
|
Notes
- The minimum operating system is Solaris 1.1.1 or Solaris 2.3.
- Cleaning is required after every 30 hours of tape motion.
- The Cleaning Kit part number is 370-2344-01.
- The 112 Meter Tape part number is 370-1298-01.
- The 160 Meter XL Tape part number is 370-1858-01.
- Firmware 8HC-0098 update tape is part number 370-3639-01.
Reference
-
14Gbyte 8mm Tape Drive Installation Manual, 802-1849.
|
