SunCD 2Plus
SS4 / SS5 / SS20 / SS1000 / SC2000
Options 578 / 579 / 661
| 370-1679 |
370-1682 |
540-2500 |
Toshiba XM-4101B
1" Purple Bezel |
Toshiba XM-4101B
1.6" Light Grey Bezel |
Toshiba XM-4101B
SS4/SS5/SS20 FRU
370-1679 w Bracket |
| Front View |
 |
|

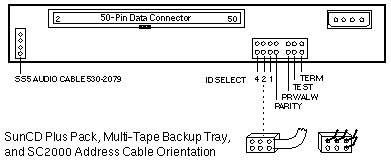

| Rear View |
 |
|
| JUMPER |
SETTING |
DESCRIPTION |
| 4 2 1 |
4 and 2 In |
ID Select 22 21 20 |
| Parity |
Out |
Enable parity |
| Prevent/Allow |
Out |
Enable eject button |
| Test |
Out |
Disabled |
| TERMPWR |
In |
Enable TERMPWR |
|
Notes
- The default setting is Target 6.
- The ID Select silkscreen is backwards on early production units.
- The last order date for this drive was September 30, 1996.
- This drive is not compatible with SS4, SS5, or SS20 chassis 340-3397.
Reference
SlimCD User's Guide, 801-5963.
|
