SunCD Plus

SS1000 / SC2000

Options 557 / 557-KDK

370-1573 370-1584 370-1615
Sony CDU-561
Option 557-KDK		 Sony CDU-561
Light Grey Bezel		 Sony CDU-561
Black Bezel

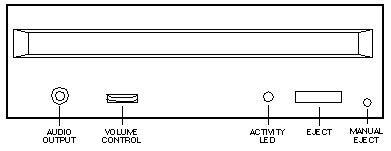

Front View

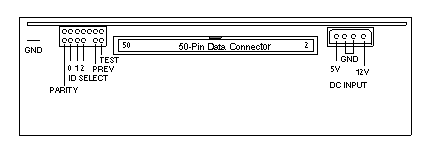

Rear View
SunCD Plus Pack, Multi-Tape Backup Tray, and
SC2000 Remote Address Cable Orientation

JUMPER SETTING DESCRIPTION
Parity In Enable parity
0, 1, 2 Out ID Select 20, 21, 22
Prevent/Allow In Enable eject button
Test Mode Out

Power

0.5 Amps @ +5Vdc
0.5 Amps @ +12Vdc
8.5 Watts

References

  1. SunCD Plus Desktop Pack Installation Manual, 801-4537.
  2. SunCD Plus User's Guide, 801-5332.
