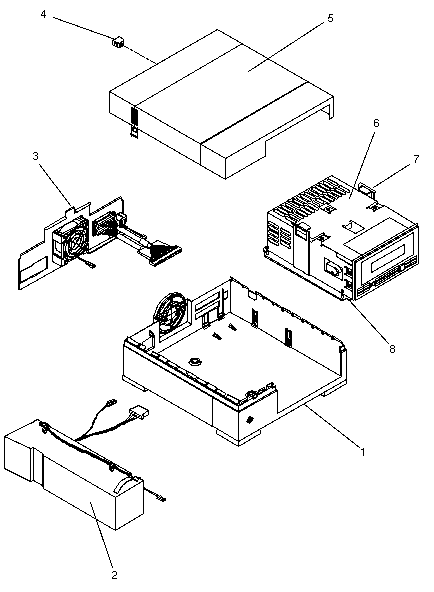

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-2173 |
Base Assembly, Tape Drive Option |
| 2 |
300-1080 |
60 Watt Power Supply |
3
-
-
-
-
-
-
-
-
-
-
-
-
-
- |
540-2145
150-1557
150-2049
340-2506
501-1468
530-1790
530-2117
530-1844
530-1844
530-1844
530-1844
530-1844
530-2125
540-2142
540-2142 |
I/O Bracket Assembly
 Address Select Switch (obsolete)
Address Select Switch
I/O Bracket
I/O PCB and Cable Assembly (obsolete)
Address Select Switch Cable (obsolete)
Address Select Switch Cable
Internal SCSI Cable, -01 Rev 50 = 300 mm
Internal SCSI Cable, -01 Rev 51 = 250 mm
Internal SCSI Cable, -02 Rev 50 = 240 mm
Internal SCSI Cable, -03 Rev 50 = 240 mm
Internal SCSI Cable, -03 Rev A = 260 mm
Internal SCSI Cable, 308 mm
DC Fan Assembly, 17 CFM (obsolete)
DC Fan Assembly, 14 CFM |
| 4 |
540-1982 |
Top Cover Lockbox Assembly |
| 5 |
540-2174 |
Top Cover Assembly, Tape Drive Option |
| 6 |
370-1405 |
2.3GB 8 mm Tape Drive, Full-Height, Grey Bezel |
| 6 |
370-1416 |
5.0GB 8 mm Tape Drive, Full-Height, Grey Bezel |
| 7 |
540-2263 |
Peripheral Removal Handle (replaced 340-2571) |
| 8 |
340-2547 |
Tape Drive Mounting Bracket |
| NS |
150-1785 |
External Active Terminator, HD50 |
| NS |
240-1141 |
#6-32 × 1/4" Tape Drive Mounting Screw |
| NS |
240-1912 |
#6-32 × 1/4" Tape Drive Mounting Screw (obs) |
| NS |
530-1792 |
External SCSI Cable, HD50 to DD-50SA, 2.0M |
| NS |
530-1793 |
External SCSI Cable, HD50 to HD50, 80 cm |
| NS |
530-1829 |
External SCSI Cable, HD50 to DD-50SA, 1.0M |
| NS |
530-1836 |
External SCSI Cable, HD50 to HD50, 2.0M |
| NS |
530-1852 |
External Cable, HD50 to HD50, 4.0M |
|
800-6219 |
Desktop Storage Module Service Manual |
|
800-7236 |
Desktop Storage Module Service Manual |
