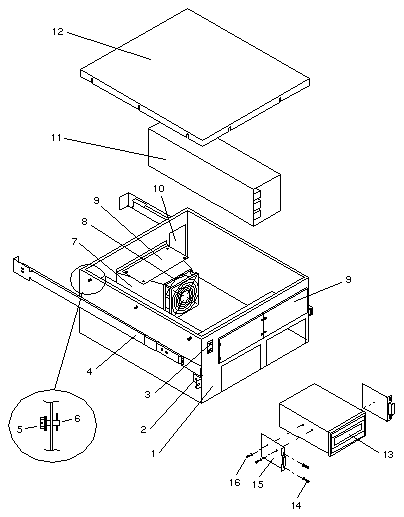

| CODE |
PART # |
DESCRIPTION |
| 1 |
340-2566 |
Chassis Enclosure |
| 2 |
340-2862 |
Tray Retaining Bracket |
| 3 |
150-1806 |
SCSI Address Select Switch |
4
4 |
370-1385
370-1385 |
-01 Slide Rail Set, Inner 651.2 mm, Outer 742.7 mm
-03 Slide Rail Set, Inner 717.3 mm, Outer 742.7 mm |
| 5 |
None |
Cross-Drilled Screw (use 240-1732-01) |
| 6 |
None |
Screw Retaining Clip |
| 7 |
340-2564 |
Fan Enclosure |
8
NS
NS |
370-1214
340-0265
240-1740 |
DC Fan, 105 CFM
 Fan Fingerguard
#6-32 × 2" Screw |
| 9 |
340-2641 |
Filler Panel (obsolete) |
| 9 |
340-2835 |
Full-Height Filler Panel |
| 9 |
340-2859 |
Half-Height Filler Panel |
| 9 |
340-3369 |
Half-Height Filler Panel |
| 10 |
340-2601 |
Connector Panel |
| 11 |
300-1096 |
269 Watt Power Supply |
| 11 |
300-1312 |
269 Watt Nordic Power Supply (Available 12/95) |
| 12 |
340-2565 |
Top Cover |
| 13 |
370-2200 |
14GB 8 mm Tape Drive, Half-Height, Dk Grey Bezel |
| 14 |
240-1372 |
M4 0.7 × 10 mm Screw |
| 15 |
340-2148 |
Peripheral Mounting Bracket |
16
16 |
240-1141
240-1530 |
#6-32 × 1/4" Screw for 5GB
M3 0.5 × 6 mm Screw for 10GB and 14GB |
|
800-7008
800-7340 |
5.0 Gbyte 8mm Tape Drive Tray Service Manual
Multi-Tape Backup Tray Service Manual |
