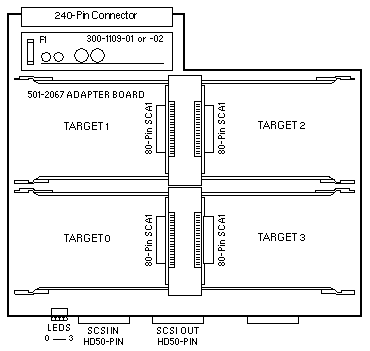

2.1-Gbyte Disk Card

SS1000 / disktower 1000

Option 597

501-2066 501-2244
w/o Disks w 4× 535MB Disks
Disk FRU 540-2403

Notes

  1. The minimum operating system is Solaris 2.2.
  2. Drive Address selection is preset to Target 0, 1, 2, and 3.
  3. An FSBE/S card is required if only one system board is installed.
  4. Do NOT daisy chain System Board 0 to the SCSI Expansion Board if disk drives are installed on the SS1000 internal SCSI Bus.
  5. Do NOT daisy chain SCSI Expansion Boards.
  6. The 42W DC-DC Converter 300-1109 is not field replaceable.
  7. Use Single-Ended SCSI Terminator 150-1785.

Reference

2.1-Gbyte Disk Card Installation Manual, 801-2196.
