4.2-Gbyte Disk Card

SS1000 / disktower 1000

Options 772 / 773

501-2588 501-2589
w/o Disks w 4× 1.05GB Disks
Disk FRU 540-2568

Notes

  1. The minimum operating system is Solaris 2.2.

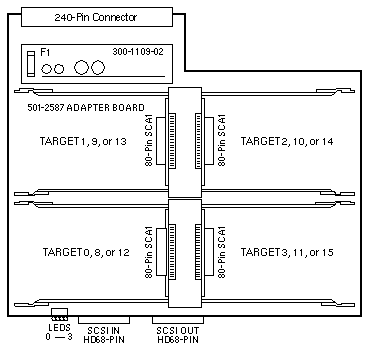

  2. Backplane Slot 0 sets drive addresses to Targets 0, 1, 2, and 3.
  3. Backplane Slot 1 sets drive addresses to Targets 8, 9, 10, and 11.
  4. Backplane Slot 2 sets drive addresses to Targets 0, 1, 2, and 3.
  5. Backplane Slot 3 sets drive addresses to Targets 12, 13, 14, and 15.
  6. An SWIS/S card is required if only one system board is installed.
  7. The 42W DC-DC Converter 300-1109 is not field replaceable.
  8. Use Single-Ended Wide-SCSI Terminator 150-2267.

Reference

Disk Card Installation Manual, 801-7671.
