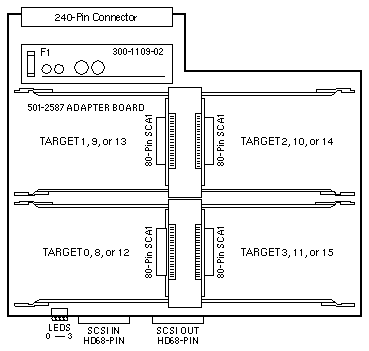

8.4-Gbyte Disk Card

SS1000 / disktower 1000

Option 775

501-2588 501-2980
w/o Disks w 4× 2.1GB Disks
7200 RPM
Disk FRU 540-2706

Notes

  1. Backplane Slot 0 sets drive addresses to Targets 0, 1, 2, and 3.
  2. Backplane Slot 1 sets drive addresses to Targets 8, 9, 10, and 11.
  3. Backplane Slot 2 sets drive addresses to Targets 0, 1, 2, and 3.
  4. Backplane Slot 3 sets drive addresses to Targets 12, 13, 14, and 15.
  5. An SWIS/S card is required if only one system board is installed.
  6. The 42W DC-DC Converter 300-1109 is not field replaceable.
  7. Use Single-Ended Wide-SCSI Terminator 150-2267.

Reference

Disk Card Installation Manual, 802-3533.
