Raid Controller
StorEdge A1000
| 375-0007 |
375-0015 |
375-0016 |
8MB MPU Memory
16MB RPA Memory
w Battery |
16MB MPU Memory
64MB RPA Memory
FRU w/o Battery |
8MB MPU Memory
16MB RPA Memory
FRU w/o Battery |
| 375-0134 |
375-0135 |
375-0136 |
8MB MPU Memory
16MB RPA Memory
w Battery |
8MB MPU Memory
16MB RPA Memory
FRU w/o Battery |
16MB MPU Memory
64MB RPA Memory
FRU w/o Battery |
| See Firmware Notes below. |

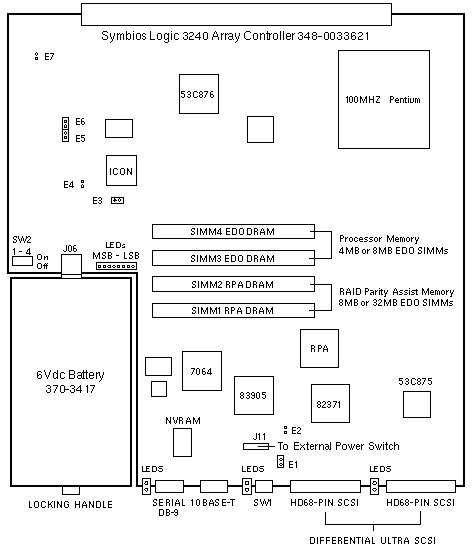

Switch and Jumper Settings
| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| E1 |
1-2 |
In |
Unknown |
| E2 |
1-2 |
Out |
Unknown |
| E3 |
1-2 |
In |
Unknown |
| E4 |
1-2 |
Out |
Unknown |
| E5 |
1-2 |
In |
Unknown |
| E6 |
1-2 |
In |
Unknown |
| E7 |
1-2 |
Out |
Unknown |
| SW1 |
0-f |
As required |
SCSI ID |
| SW2 |
1-4 |
Off |
Diag |
Notes
- The minimum operating system is Solaris 2.5.1 Hardware: 8/97.
- The M48T59 NVRAM uses an M4T28 SNAPHAT battery.
Memory Notes
- The RAID Controller uses Extended Data Out SIMMs.
- The 32MB RPA SIMM is Sun Part Number 370-2439-01.
- The 4MB MPU SIMM has no Sun part number.
- The 8MB MPU or RPA SIMM has no Sun part number.
- Install 8MB or 32MB RPA SIMMs in slots SIMM-1 and SIMM-2.
- Install 4MB or 8MB MPU SIMMs in slots SIMM-3 and SIMM-4.
Firmware Notes
- Firmware on 375-0007, 375-0015, and 375-0016 is compatible with
RAID Manager 6.0, 6.1, and 6.1.1. This controller firmware is not
compatible with RAID Manager 6.22.
- Firmware on 375-0134, 375-0135, and 375-0136 is compatible with
RAID Manager 6.22. This controller firmware is not compatible with
RAID Manager 6.0, 6.1, and 6.1.1.
Reference
A1000 Installation, Operation, and Service Manual, 805-2624.
|
