12-Slot SCSI Disk Backplane

StorEdge D2

375-3049 370-4617
Backplane Chassis FRU Assembly

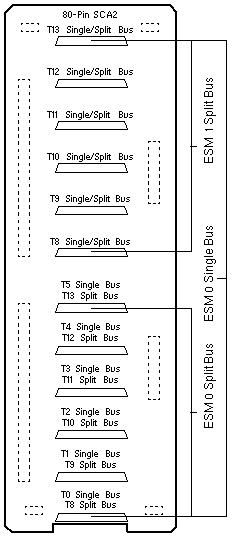

Front View

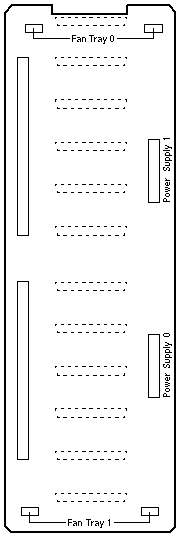

     Rear View

Notes

  1. ESM 0 controls all drives (T0 - T13) in Single Bus Mode.
  2. ESM 0 controls drives on the left (T8 - T13) in Split Bus Mode.
  3. ESM 1 controls drives on the right (T8 - T13) in Split Bus Mode.
