Ultra-3 SCSI Controller

Codename: Carmel

StorEdge D2

375-3059 540-5016

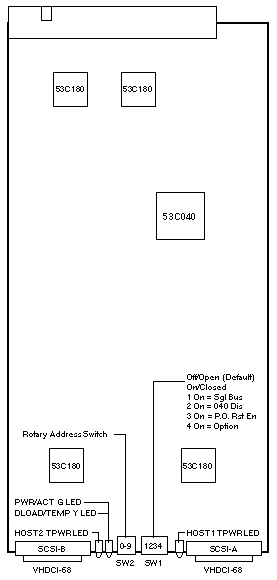

Controller Board FRU Assembly

Notes

  1. The board is installed solder side up in the StorEdge D2.
  2. Set SW1-1 On (towards the chassis top) to enable Single Bus Mode.
  3. Set SW1-1 Off (towards the chassis bottom) to enable Split Bus Mode.

Reference

Installation, Operation, and Service Manual, 816-2578.
