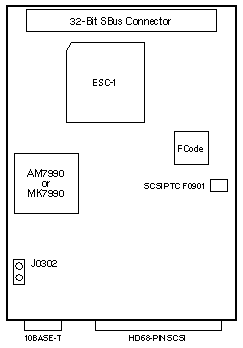

Differential SCSI/Ethernet (DSBE/S)

Codename: Scud

4/75 / SS5 / SS10 / SS20 / SS600 / SS1000 / SC2000
A11 / A12 / A14
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500 / E10000

Option 1052

501-1902

Power

1.9 Amps @ +5Vdc
9.5 Watts

Notes

  1. Install J0302 to disable the TPE link integrity test.
  2. Remove J0302 to enable the TPE link integrity test.

Reference

DSBE/S+ SBus Card Manual, 800-7176.
