6-Slot SCSI Disk Backplane

Enterprise 250

501-4682

Notes

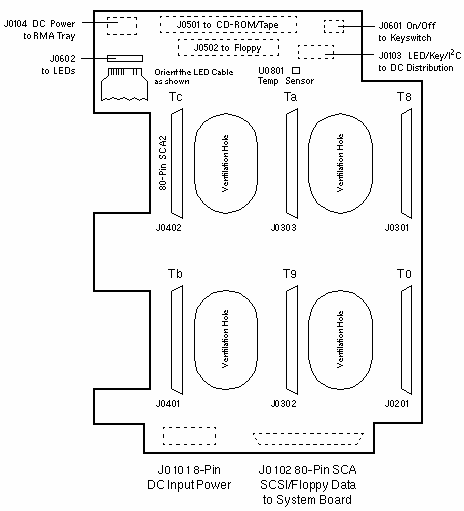

  1. Backplane 501-4682-04 with FAB 270-4682-04 is shown.
  2. Backplane 501-4682-03 was built with FAB 270-4682-03.
  3. Power connector J0104 is on the right side of FAB 270-4682-03.
  4. Keyswitch connector J0601 is on the left side of FAB 270-4682-03.

References

  1. Enterprise 250 Owners Guide, 805-5160.
  2. Enterprise 250 ShowMe How, 724-2794.
