Fast SCSI/Ethernet (FSBE/S)

Sun-4/15/30/40/50/60/65/75
SS4 / SS5 / SS10 / SS20 / SS600 / SS1000 / SC2000
A11 / A12 / A14
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500 / E10000

Option 1053

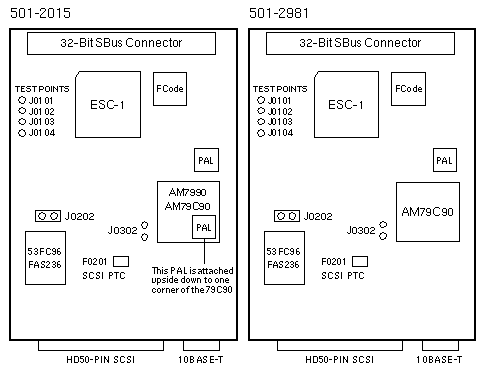

501-2015 501-2981

Power

1.9 Amps @ +5Vdc
9.5 Watts not including MAU +12Vdc power requirements

Notes

  1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3)
  2. Open Boot PROM 2.x is required.
  3. Install J0202 to enable the SCSI clock.
  4. Install J0302 to disable the TPE link integrity test.
  5. Remove J0302 to enable the TPE link integrity test.
  6. The 501-2015-05 uses a modified AM79C90 Ethernet controller and a piggyback mounted PAL to make the AM79C90 act like a AM7990.
  7. The 501-2981 uses a modified AM79C90 Ethernet Controller.

Reference

FSBE/S SBus Card Installation Guide, 800-7508.
