SCSI Adapter
MediaCenter 1000E SPARCstorage Array
595-3563 |
501-2980 |
501-2070 |
FRU Assembly |
Interconnect Card |
Daughter Card |

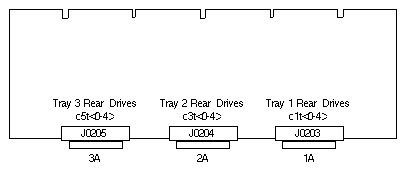

501-2980 Solder Side
![](images/SCSI_MediaCtr_1000E_Adptr.01.gif) |
|

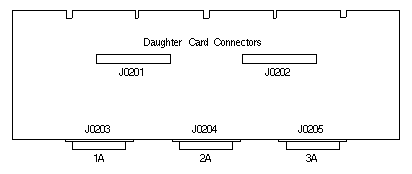

501-2980 Top Side
![](images/SCSI_MediaCtr_1000E_Adptr.02.gif) |
|

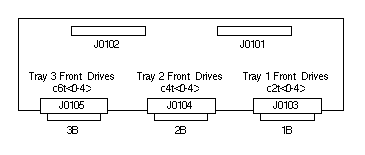

501-2070 Top Side
![](images/SCSI_MediaCtr_1000E_Adptr.03.gif) |
|

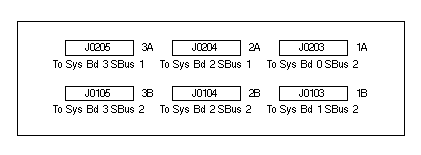

Assembly 595-3563 Backpanel
![](images/SCSI_MediaCtr_1000E_Adptr.04.gif) |
|

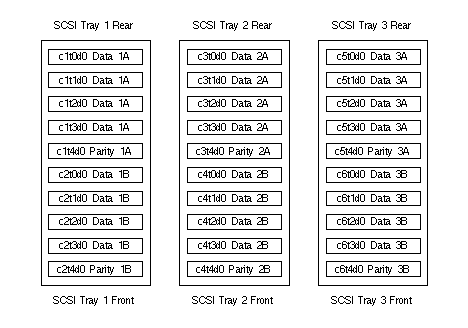

SPARCstorage Array SCSI Disk Trays
![](images/SCSI_MediaCtr_1000E_Adptr.05.gif) |
|
Notes
- Sun MediaCenter software is required.
- Sun MediaCenter software is an integrated extension to Solaris 2.4
incorporating modified device drivers, file system management tools, and
networked media management tools.
- Solstice Backup and Solstice DiskSuite are not compatible with the Media
File System because the Media File System uses RAID 4 data striping and parity.
References
Sun MediaCenter Server Software Manual, 802-3804.
Sun MediaCenter Server Hardware Manual, 802-4680.
Sun MediaCenter 1000 Installation and Service Manual, 802-4865.
|
