Array Controller

Notes

1. The Phase I minimum operating system is Solaris 2.4.
2. The Phase II minimum operating system is Solaris 2.5.1.
3. Phase II software requires Firmware >=02.04.04.01.
4. The M48T18 NVRAM uses an M4T28 SNAPHAT battery.

RSM Array 2000 Notes

1. The RSM Array 2000 is a controller and chassis.
2. The RSM Array 2000 is also the name of a cabinet mounted RSM Array 2000 controller and chassis with SSA 214/219 RSM disk trays.
3. An RSM Array 2000 nameplate is on the RSM Array 2000 chassis in an RSM Array 2000 cabinet with SSA 214/219 RSM disk trays.
4. The RSM Array 2000 was renamed StorEdge A3000 in January 1998.
5. Use Array Controller 540-3600 with the RSM Array 2000.

StorEdge A3000 Notes

1. The StorEdge A3000 is a controller and chassis.
2. The StorEdge A3000 is also the name of a cabinet mounted A3000 controller and chassis with SSA 214/219 RSM disk trays.
3. An RSM Array 2000 nameplate is on the StorEdge A3000 chassis in a StorEdge A3000 cabinet with SSA 214/219 RSM disk trays.
4. Use Array Controller 540-3600 with the StorEdge A3000.

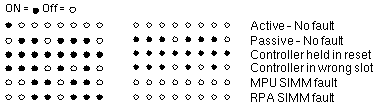

Memory Notes

1. The Main Processor Unit (MPU) SIMMs serve as processor memory.
2. The RAID Parity Assist (RPA) SIMMs serve as cache memory.
3. Use 8MB SIMM 370-2438 and 32MB SIMM 370-2439.
4. The 370-2438 and 370-2439 are not labeled with a Sun Part Number.
5. Memory failures are reported as a pair of two SIMMs.
6. Install 32MB SIMMs in SIMM-2 and SIMM-4 for RPA Low Bank.
7. Install 32MB SIMMs in SIMM-1 and SIMM-3 for RPA High Bank.
8. Install 8MB SIMMs in SIMM-5 and SIMM-6 for MPU DRAM.
9. The 540-3600 Array Controller FRU was released October 1997.

References

1. RSM Array 2000 System Manual, 802-7603.
2. RSM Array 2000 Controller Module Installation Guide, 802-7602.
3. RAID Manager Controller Replacement Guide, 805-7854.
