SCSI/Ethernet (SBE/S)

SS5 / SS10 / SS20 / SS600
SS1000 / SC2000 / A11 / A12 / A14

Option 1054

501-1869

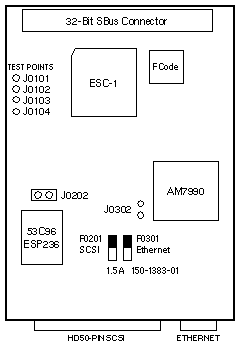

Jumper Settings

JUMPER SETTING DESCRIPTION
J0202 In Enable SCSI clock
J0302 In Enable 10BASE5
J0302 Out Enable 10BASE-T

Power

1.9 Amps @ +5Vdc
9.5 Watts not including MAU +12Vdc power requirements

Notes

  1. Use Adapter Cable 530-1812 for 10BASE5 Ethernet.
  2. Use Adapter Cable 530-1813 for 10BASE-T Ethernet.
  3. The SBE/S does not provide Link Test. Disable Link Test on the Hub.

Reference

SBE/S SBus User's Guide, 800-6475.
