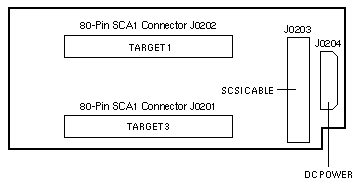

SCSI Adapter

SS4 / SS5 / SS20

501-2462

SS5 and SS20
Chassis 540-2438		 SS5 and SS20
Chassis 540-2850

Notes

  1. SCSI target assignments are hardwired and cannot be changed.
  2. A SCSI command conflict occurs when
    a Conner 1GB Disk Drive (370-1822, FRU 540-2560) and
    an IBM 1GB Disk Drive (370-2072, FRU 540-2560) are installed.
  3. Chassis 540-2438 was phased out of production in Nov/Dec 1996.
  4. Chassis 540-2850 was phased into production in July 1996.
  5. Vibration Kit 540-3346, for the SS4 with Quantum 1080S Disk Drive, includes a SCSI Adapter, SCSI Cable, and DC Wire Harness.
  6. Only one drive is supported in the SS4 in the Target 3 connector.
    The Target 1 connector is not supported in the SS4.
