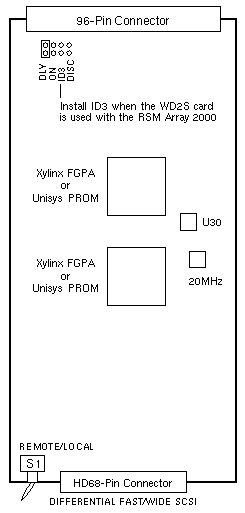

WD2S SCSI Adapter

Codename: Tabasco

SPARCstorage RSM

370-2196 370-3375
Programable FPGA
w U30 Installed		 Masked PROM
w/o U30 Installed

Notes

  1. Do NOT connect the WD2S to single-ended host adapters.
  2. The WD2S does not support Ultra SCSI transfer rates.
  3. Single-ended SCSI disk drives are installed in the SPARCstorage RSM.
  4. The WD2S converts single-ended wide SCSI to differential wide SCSI.
  5. Daisy chain operation is not supported by the 370-2196 WD2S card.
  6. SCSI address are 0 to 7 when ID3 is removed.
  7. SCSI address are 8 to f when ID3 is installed.

Reference

SPARCstorage RSM Installation, Operations, and Service, 802-5062.
