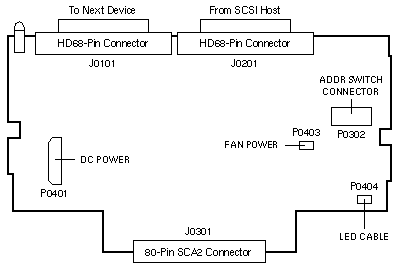

SCSI Adapter

Codename: Togo

SPARCstorage UniPack / StorEdge UniPack

501-2790
80-Pin Disk Options
Fast/Wide SCSI

Notes

  1. The SCSI bus length on the SCSI Adapter is approximately 170 mm.
  2. The SCSI Adapter is included with Power Supply Assembly 540-2694.

Termination Notes

  1. The Desktop Storage Pack requires external termination.
  2. The SPARCstorage UniPack does not require external termination.
  3. The Upper LED indicates termination of SCSI Data Bits D15 - D8.
  4. The Lower LED indicates termination of SCSI Data Bits D7 - D0.

Reference

SPARCstorage UniPack Hardware Setup Instructions, 802-3227.

SCSI Adapter

Codename: Togo

StorEdge UniPack

501-4823
80-Pin Disk Options
Ultra/Wide SCSI

Notes

  1. The SCSI bus length on the SCSI Adapter is approximately 170 mm.
  2. The SCSI Adapter is included with Power Supply Assembly 540-3732.

Termination Notes

  1. The Desktop Storage Pack requires external termination.
  2. The StorEdge UniPack does not require external termination.
  3. The Upper LED indicates termination of SCSI Data Bits D15 - D8.
  4. The Lower LED indicates termination of SCSI Data Bits D7 - D0.

Reference

SPARCstorage UniPack Hardware Setup Instructions, 802-3227.

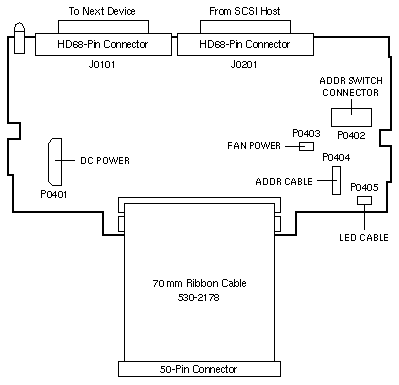

SCSI Adapter

Codename: Togo

SPARCstorage UniPack / StorEdge UniPack

501-2791
CD-ROM Options
Narrow SCSI Tape Options

Notes

  1. The SCSI bus length on the SCSI Adapter is approximately 170 mm.
  2. The ribbon cable is soldered to the printed circuit board.
  3. The SCSI Adapter is included with Power Supply Assembly 540-2674.

Termination Notes

  1. The Desktop Storage Pack requires external termination.
  2. The SPARCstorage UniPack does not require external termination.
  3. The Upper LED indicates termination of SCSI Data Bits D15 - D8.
  4. The Lower LED indicates termination of SCSI Data Bits D7 - D0.

Reference

SPARCstorage UniPack Hardware Setup Instructions, 802-3227.

SCSI Adapter

Codename: Togo

SPARCstorage UniPack / StorEdge UniPack

501-3108
Wide SCSI Tape Options

Notes

  1. The SCSI bus length on the SCSI Adapter is approximately 170 mm.
  2. The ribbon cable is soldered to the printed circuit board.
  3. The SCSI Adapter is included with Power Supply Assembly 540-3004.

Termination Notes

  1. The Desktop Storage Pack requires external termination.
  2. The SPARCstorage UniPack does not require external termination.
  3. The Upper LED indicates termination of SCSI Data Bits D15 - D8.
  4. The Lower LED indicates termination of SCSI Data Bits D7 - D0.

Reference

SPARCstorage UniPack Hardware Setup Instructions, 802-3227.
