4-Slot SCSI Disk Backplane

Ultra 450 / Ultra Enterprise 450

501-4148

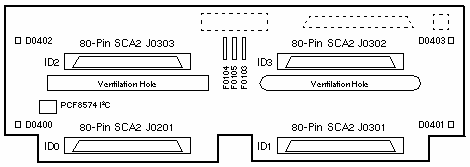

Front View

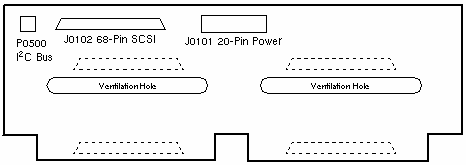

Rear View

Notes

  1. The 4-Slot Backplane is controlled by /pci@1f,4000/scsi@3.
  2. Set OBP disk-led-assoc 0 to access the 4-Slot Backplane.
  3. Hot plugging <=501-4148-04 causes other disks on the bus to go off-line.
  4. Hot plugging operates correctly in 501-4148-05.

References

  1. Ultra Enterprise 450 Owners Guide, 805-0429.
  2. Ultra 450 Owners Guide, 805-0430.
