Removable Media Backplane

Ultra 450 / Ultra Enterprise 450

501-3128

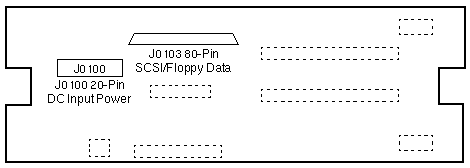

Front View

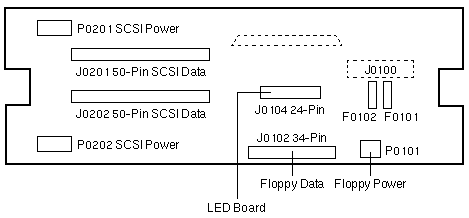

Rear View

Notes

  1. The RMA Backplane is controlled by /pci@1f,4000/scsi@2.
  2. The external A20/A25 SCSI bus is controlled by /pci@1f,4000/scsi@2.

References

  1. Ultra Enterprise 450 Owners Guide, 805-0429.
  2. Ultra 450 Owners Guide, 805-0430.
