Netra CP2040

Codename: Othello

CP2040S-500

501-5721
500MHz
0MB FRU

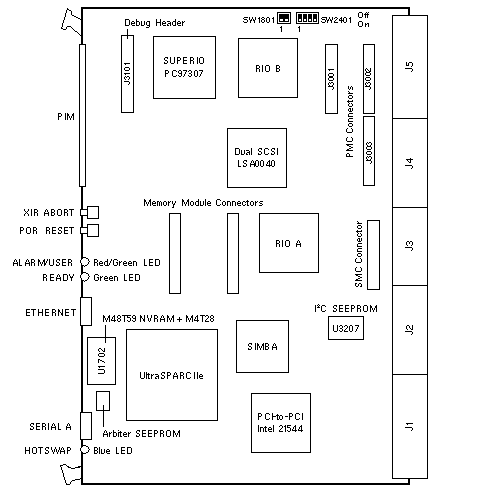

w Front Panel

Jumper Settings

SWITCH DIP SETTING DESCRIPTION
SW0501 1
2		 On
On		 SMC setting for non-HA system
1
2		 Off
On		 SMC setting for HA system
SW1801 1
2		 Off
Off		 Boot Flash PROM selected (default)
1
2		 On
On		 User Flash PROM 1 selected
1
2		 Off
On		 User Flash PROM 1 and 2 selected
1
2		 On
Off		 ROMBO selected
SW2401 1
1		 Off
On		 SCSI Bus A Termination Power enabled
SCSI Bus A Termination Power disabled
2
2		 Off
On		 SCSI Bus B Termination Power enabled
SCSI Bus B Termination Power disabled
3
3		 Off
On		 SCSI Bus A Termination enabled
SCSI Bus A Termination disabled
4
4		 Off
On		 SCSI Bus B Termination enabled
SCSI Bus B Termination disabled

Notes

  1. The Hostid and MAC address are in I2C SEEPROM 100-6223 at U3209.
  2. The CP2040 uses 256MB Memory mezzanine 375-3024.
  3. The CP2040 uses 512MB Memory mezzanine 375-3025.
  4. The CP2040 uses 1GB Memory mezzanine 375-3026.
  5. The CP2040 uses Rear Transition Card 375-0121.
  6. High Availability (HA) systems use the BD_SEL, HEALTHY, and PCI-RST signals to control each slot.

Reference

Netra CP2040 Technical Reference Manual, 806-4994.
