Netra CP2060
| Codename: Sputnik Bluesky |
CP2060-500
| 375-3021 |
375-3095 |
595-5959 |
500MHz
256MB
w Front Panel |
500MHz
256MB OEM FRU |
CP2060 375-3021
256MB FRU |

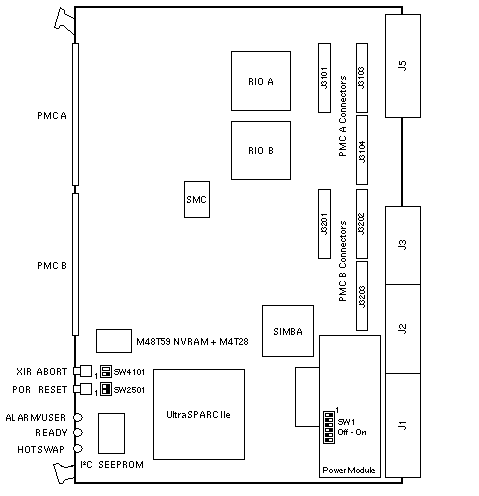

Jumper Settings
| SWITCH |
DIP |
SETTING |
DESCRIPTION |
| SW1 |
1-6 |
preset |
Factory use only |
| SW2501 |
1 |
On
Off |
OBP write enabled (default)
OBP write protected |
| 2 |
On
On |
User Flash PROM enabled (default)
User Flash PROM write enabled (default) |
Off
Off |
User Flash PROM disabled
User Flash PROM write protected |
| SW4101 |
1 |
On
Off |
Boot Flash PROM selected (default)
Use SMC configuration block |
| 2 |
On/Off |
Reserved |
SMC Configuration Options
| BYTE 7 BIT <3:2> |
DESCRIPTION |
00
01
10
11 |
User Flash
ROMBO
User Flash
Main Flash |
Notes
- The Hostid and MAC address are in the I2C SEEPROM.
- The CP2060 uses Rear Transition Card 375-0120.
- Use the set-smcenv and show-smcenv
OBP commands to set and display the System Management Controller
configuration block.
Reference
Netra CP2060 and CP2080 Technical Reference and Installation Manual, 806-6658.
|
|
|
