Netra CP2080

Codename: Sputnik Orion

CP2080-500

375-3023 375-3099 375-3100 595-5873 595-5958
500MHz
0MB
w Front Panel		 CP2080 375-3094
1GB OEM FRU		 256MB
OEM FRU		 CP2080 375-3023
256MB OEM FRU
Inactivated 3/02		 CP2060 375-3023
0MB FRU
Inactivated 3/02

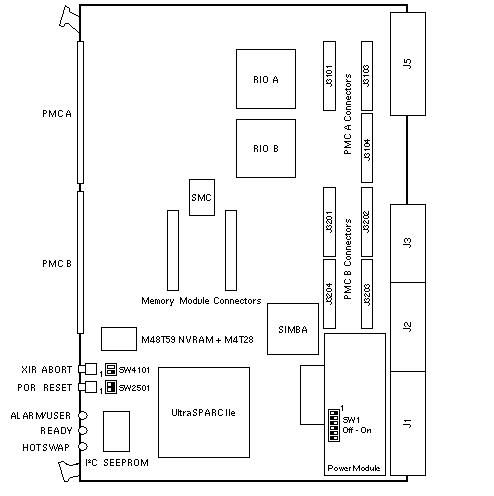

Jumper Settings

SWITCH DIP SETTING DESCRIPTION
SW1 1-6 preset Factory use only
SW2501 1 On
Off		 OBP write enabled (default)
OBP write protected
2 On
On		 User Flash PROM enabled (default)
User Flash PROM write enabled (default)
Off
Off		 User Flash PROM disabled
User Flash PROM write protected
SW4101 1 On
Off		 Boot Flash PROM selected (default)
Use SMC configuration block
2 On/Off Reserved

SMC Configuration Block Options
Byte 7 Bit <3:2>

USER
FLASH		 ROMBO USER
FLASH		 MAIN
FLASH
00

0-16MB
User Flash		 01

0-4MB
ROMBO

4-12MB
User Flash

12-16MB
Main Flash		 10

0-8MB
User Flash

8-12MB
Main Flash

12-16MB
ROMBO		 11

0-4MB
Main Flash

4-12MB
User Flash

12-16MB
ROMBO

Notes

  1. The Hostid and MAC address are in the I2C SEEPROM.
  2. The CP2080 uses 256MB Memory mezzanine 375-3024.
  3. The CP2080 uses 512MB Memory mezzanine 375-3025.
  4. The CP2080 uses 1GB Memory mezzanine 375-3026.
  5. The CP2080 uses Rear Transition Card 375-0120.
  6. Use the set-smcenv and show-smcenv OBP commands to set and display the System Management Controller configuration block.

Reference

Netra CP2060 and CP2080 Technical Reference and Installation Manual, 806-6658.
