Netra CP2140

Codename: Othello+

CP2140S-650 / Netra CT 410 / Netra CT 810

501-6358 501-6403 501-6416 501-6417
650MHz
0MB FRU		 650MB
1GB		 650MB
2GB		 650MB
4GB

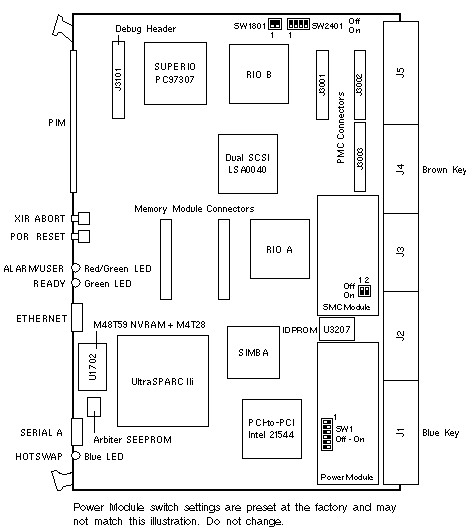

Jumper Settings

SWITCH DIP SETTING DESCRIPTION
SW0501 1
2		 On
On		 SMC setting for non-HA system (default)
1
2		 Off
On		 SMC setting for HA system
SW1801 1
2		 Off
Off		 Boot Flash PROM selected (default)
1
2		 On
On		 User Flash PROM 1 selected
1
2		 Off
On		 User Flash PROM 1 and 2 selected
1
2		 On
Off		 ROMBO selected
SW4101 1
1		 Off
On		 SCSI Bus A Termination Power enabled
SCSI Bus A Termination Power disabled
2
2		 Off
On		 SCSI Bus B Termination Power enabled
SCSI Bus B Termination Power disabled
3
3		 Off
On		 SCSI Bus A Termination enabled
SCSI Bus A Termination disabled
4
4		 Off
On		 SCSI Bus B Termination enabled
SCSI Bus B Termination disabled

Netra CT 410/810 Codename: Makaha

Notes

  1. The minimum operating system is Solaris 8 2/02.
  2. The Hostid and MAC address are in the I2C SEEPROM 100-6755 at U3207.
  3. Use 512MB Memory 375-3025, Option XCP2000-MEM-512.
  4. Use 1GB Memory 375-3026, Option XCP2000-MEM-1GB.
  5. Use Rear Transition Card 375-0121, Option XCP2040-TRN.
  6. High Availability (HA) systems use the BD_SEL, HEALTHY, and PCI-RST signals to control each slot.

UltraSPARC IIi Notes

  1. The 650MHz UltraSPARC IIi is similar to the 270-440MHz UltraSPARC IIi. Differences include integrated L2 Cache and SDRAM Memory Control.
  2. The 650MHz UltraSPARC IIi is based on the 500MHz UltraSPARC IIe.
  3. The 650MHz UltraSPARC IIi OBP and OS name is UltraSPARC IIe.

Reference

Netra CP2140 Technical Reference Manual, 816-4908.
