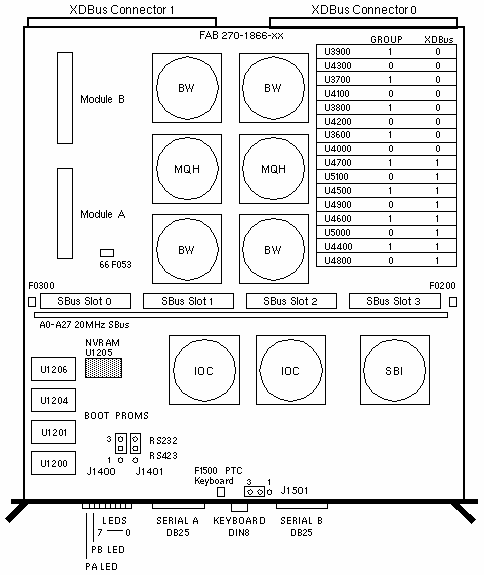

SPARCcenter 2000

501-1866
0MB FRU
w/o SPARC Module

Notes

  1. FAB 270-1866-03 uses a fuse at F0200 and F0300.
  2. FAB 270-1866-04 uses a PTC at F0200 and F0300.
  3. System Board 501-1866-xx can only access 1MB of cache.

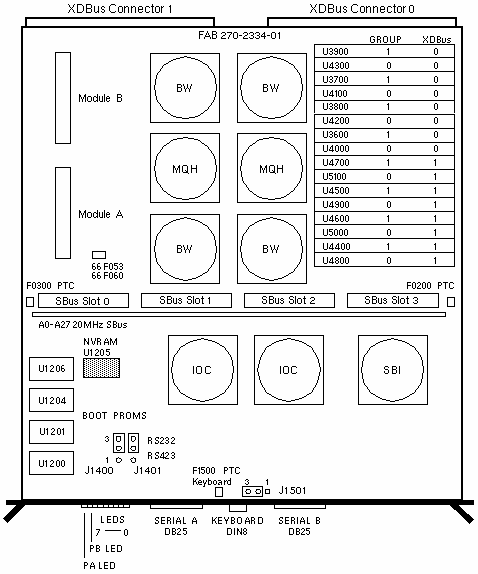

SPARCcenter 2000

501-2334
0MB FRU
w/o SPARC Module

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1400
J1401
J1400
J1401
1-2
1-2
2-3
2-3
Out
Out
In
In
RS-423
RS-423
RS-232 +12V (default)
RS-232 -12V (default)
J1501 1-2
2-3
Out
In
Factory use only
Factory setting

Backplane Guide Pins

Remove two screws from the System Board XDbus connectors before installing the system board in backplanes with guide pins. Guide pins were added to the backplane in December 1993 by ECO WO_05425 .

Notes

  1. The minimum operating system is Solaris 2.2.
  2. Solaris 2.2 supports 5 system boards.
  3. Solaris 2.2 supports 8 SuperSPARC modules on 4 system boards.
  4. Solaris 2.3 supports 20 SuperSPARC modules on 10 system boards.
  5. Install the highest level Boot PROM set in System Board 0.
  6. Use SPARC module and SBus board Standoff 330-1664-01.
  7. A root partition >2GB is not supported by Sun-4c, 4m, or 4d systems.

Memory Configuration Notes

  1. The minimum memory configuration is 8 SIMMs in Group 0.
  2. Install all Group 0 SIMMs on all system boards from the lowest board slot number to the highest. Then install SIMMs in Group 1 on all system boards. Refer to the Memory Module Installation Guide for installation performance guidelines.
  3. Use 8MB SIMM 501-1817 and 32MB SIMM 501-2196.

References

  1. SPARCcenter 2000 Installation Manual, 800-6975.
  2. SPARCcenter 2000 System Board Manual, 800-6993.
  3. Memory Module (SIMM) Product Note, 801-5345.
  4. Memory Module Installation Guide, 801-2030.
  5. BugID 4035259 filed against root partition >2GB.

SC2000 Configured System Boards

PART
NUMBER
MAIN
MEMORY
SIMM
SIZE
NV
MEMORY
NVSIMM
SIZE
SPARC
MODULE
501-2208 128MB 8MB - - 2 SM41
501-2209 64MB 8MB - - 2 SM41
501-2221 128MB 8MB - - -
501-2223 0MB - - - 2 SM51
501-2296 64MB 8MB 8MB 1MB 2 SM41
501-2321 256MB 32MB - - 2 SM41
501-2322 256MB 32MB 8MB 1MB 2 SM41
501-2323 512MB 32MB - - 2 SM41
501-2437 128MB 8MB - - 2 SM51-2
501-2438 64MB 8MB - - 2 SM51-2
501-2439 512MB 32MB - - -
501-2448 64MB 8MB - - -
501-2720 0MB - - - 2 SM61-2
501-2721 128MB 8MB - - 2 SM61-2
501-2722 256MB 32MB - - 2 SM61-2


40MHz Control Board

SPARCcenter 2000

501-1671 501-2335 501-2406
Programmed Programmed Unprogrammed

LED Description

LED SIGNAL DESCRIPTION COLOR
SP SVP Service processor attached Yellow
RS RST System reset Yellow
S0 STP0 Stop request from CARB0 ASIC Yellow
S1 STP1 Stop request from CARB1 ASIC Yellow
VB Vbb -12 Volts DC status OK Green
VD Vdd +12 Volts DC status OK Green
VT Vtt +1.2 Volts DC status OK Green
VC Vcc +5 Volts DC status OK Green

Notes

  1. The 40MHz Control Board is not compatible with the SC2000E System Board.
  2. The HOSTID and Ethernet Address are programmed into a 2KB × 8-bit Flash EEPROM in the TMS29F816 at U0203. The TMS29F816 is not field replaceable.
  3. The HOSTID and Ethernet Address are downloaded from the control board to the NVRAM on all system boards during POST.
  4. If the control board EEPROM content is invalid, the values stored in the NVRAM on System Board 0 are used.
  5. The Yellow LED on the keyswitch interface board is ON if the control board EEPROM content is invalid.
  6. Use the update-system-idprom OBP command to download the contents of the NVRAM on System Board 0 to a control board with an invalid EEPROM. OBP 2.11 is required.
  7. Use the following command sequence to invalidate the control board EEPROM:
    ok patch noop call update-system-idprom
    ok patch noop call update-system-idprom
    ok patch call noop update-system-idprom
    Power the system off and remove the Control Board.
  8. Use the following commands to change the NVRAM parameter that defines the location of the master system board:
    ok clear-master-nvram
    ok reset
  9. The 501-1671-04 has a 66MHz clock for the early production units with 33MHz SuperSPARC modules.

Reference

SPARCcenter 2000 Service Manual, 801-2007.
