E10000 Control Board

Options 2720 / 2721 / 2722

501-4345 501-4839 501-5494
Option 2720
3:1 4:1 Clock÷
Option 2721
3:1 4:1 Clock÷
Option 2722
3:1 4:1 5:1 Clock÷

Notes

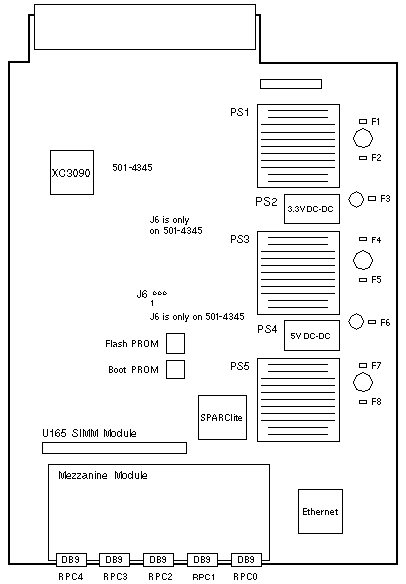

  1. Do NOT install jumpers at location J6.
  2. Do NOT remove the Control Board if the Yellow LEDs are ON.

References

  1. Enterprise 10000 System Component Replacement Guide, 805-0311.
  2. Enterprise 10000 System Service Manual, 805-2917.

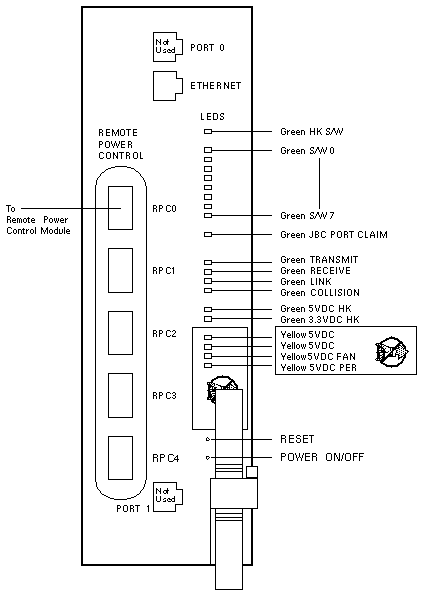

Backpanel and Connectors
