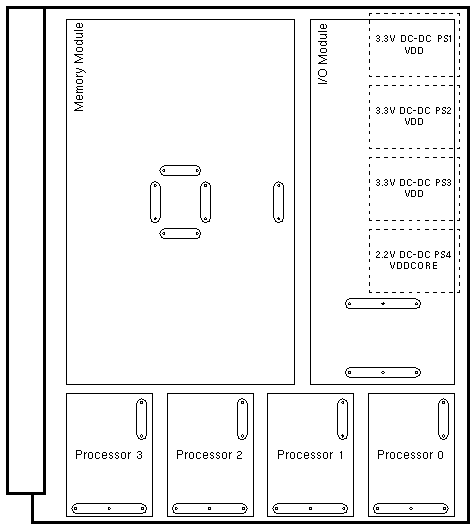

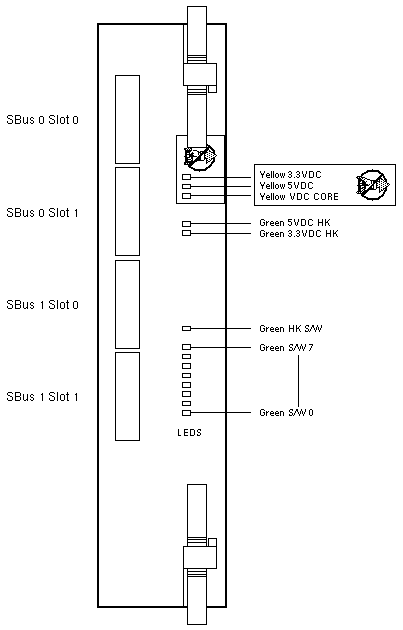

E10000 System Board

Option 2760

501-4347 501-4786 501-4903
0MB FRU w/o I/O
w/o Module
Tested at 83MHz
Released 2/97		 0MB FRU w/o I/O
w/o Module
Tested at 83MHz
Released 7/97		 0MB FRU w/o I/O
w/o Module
Tested at 83MHz
Released 2/98

Notes

  1. The minimum operating system is Solaris 2.5.1.
  2. Do NOT remove the System Board if the Yellow LEDs are ON.
  3. A minimum of one Processor Module per System Board is required.
  4. Mixing module cache sizes on a single board is supported.
  5. The smallest cache size is used if mixed size modules are installed.
  6. Mixing module cache sizes within a system is supported.
  7. Mixing module speeds within a system is supported.
  8. Thermal calibration is required if a new System Board is added, or when a System Board is replaced or moved to a different slot.
  9. System Boards 501-4347, 501-4786, and 501-4903 do not support 400MHz modules.

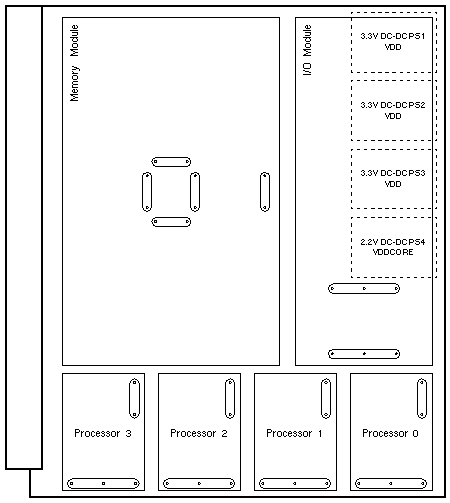

E10000 System Board

Option 2761

501-5240 501-5278 501-5279 501-5959
0MB FRU w/o I/O
w/o Module
Reworked 500-4903
Tested at 100MHz
Option 2761		 0MB FRU w/o I/O
w/o Module
Reworked 500-4347
Tested at 100MHz
No Option Number		 0MB FRU w/o I/O
w/o Module
Reworked 500-4786
Tested at 100MHz
No Option Number		 0MB FRU w/o I/O
4× 400MHz Modules
501-5240 + USII
Tested at 100MHz
No Option Number

Notes

  1. The minimum operating system is Solaris 2.5.1.
  2. Do NOT remove the System Board if the Yellow LEDs are ON.
  3. A minimum of one Processor Module per System Board is required.
  4. Mixing module cache sizes on a single board is supported.
  5. The smallest cache size is used if mixed size modules are installed.
  6. Mixing module cache sizes within a system is supported.
  7. Mixing module speeds within a system is supported.
  8. Thermal calibration is required if a new System Board is added, or when a System Board is replaced or moved to a different slot.

E10000 System Board

501-6336
0MB FRU w/o I/O
w/o Module
Reworked 500-5240
Tested at 100MHz
No Option Number

Notes

  1. The minimum operating system is Solaris 2.5.1.
  2. Do NOT remove the System Board if the Yellow LEDs are ON.
  3. A minimum of one Processor Module per System Board is required.
  4. Mixing module cache sizes on a single board is supported.
  5. The smallest cache size is used if mixed size modules are installed.
  6. Mixing module cache sizes within a system is supported.
  7. Mixing module speeds within a system is supported.
  8. Thermal calibration is required if a new System Board is added, or when a System Board is replaced or moved to a different slot.
  9. Patches >=108536-01 and >=108930-02 (SSP 3.1.1), or >=108543-03 and >=108677-01 (SSP 3.2), or >=108885-01 (SSP 3.3) are required. Refer to Installation Instructions, 806-5078.

E10000 System Board

Option 2761

501-5693 501-5934 501-5935 501-5960
0MB FRU w/o I/O
w/o Module
Tested at 100MHz
Option 2761		 0MB FRU w/o I/O
4 × 400MHz Modules
Tested at 100MHz
No Option Number		 0MB FRU w/o I/O
2 × 400MHz Modules
Tested at 100MHz
No Option Number		 0MB FRU w/o I/O
4 × 400MHz Modules
Tested at 100MHz
No Option Number

Notes

  1. The minimum operating system is Solaris 2.5.1.
  2. Do NOT remove the System Board if the Yellow LEDs are ON.
  3. A minimum of one Processor Module per System Board is required.
  4. Mixing module cache sizes on a single board is supported.
  5. The smallest cache size is used if mixed size modules are installed.
  6. Mixing module cache sizes within a system is supported.
  7. Mixing module speeds within a system is supported.
  8. Thermal calibration is required if a new System Board is added, or when a System Board is replaced or moved to a different slot.
  9. Patches >=108536-01 and >=108930-02 (SSP 3.1.1), or >=108543-03 and >=108677-01 (SSP 3.2), or >=108885-01 (SSP 3.3) are required. Refer to Installation Instructions, 806-5078.


Backpanel and Connectors

501-4347 501-4786 501-4903 501-5240
501-5278 501-5279 501-5693 501-5934
501-5935 501-5959 501-5960 501-6336

References

  1. Enterprise 10000 System Component Replacement Guide, 805-0311.
  2. Enterprise 10000 System Service Manual, 805-2917.
  3. System Board Installation and Configuration Guide, 805-7189.
